AR0823 Power Tree

AR0823

The AR0823AT is an 8.3 MP Hyperlux™ CMOS image sensor featuring a 1/1.8-inch optical format, 4K (3840 × 2160) resolution at up to 60 fps, and advanced HDR with LED Flicker Mitigation (LFM). Its 2.1 μm BSI pixel architecture delivers excellent low-light performance and enables up to 150 dB dynamic range, making it ideal for automotive cameras, machine vision, intelligent transportation, and industrial imaging applications. The sensor also supports dual-output operation, ROI selection, binning, and windowing for flexible system design.

The AR0823AT Hyperlux™ 8.3 MP image sensor requires dedicated 1.8 V I/O (VDDIO), 1.0 V core (VDD), and 1.8 V/2.8 V analog (VAA) supply rails. For 5 V input designs, the power tree combines the FAN53745 1 A buck regulator with NCP114, NCP189ADJ, and NCP163 low-noise LDOs to generate the sensor supply domains. For 5 V to 18 V applications, the highly integrated NCV92310 PMIC provides all required rails and sequencing functions in a single device, simplifying power-over-coax camera designs. In 48 V industrial systems, a FAN65004C 6 A buck regulator generates an intermediate 3.2 V rail that feeds the same LDO-based architecture. Additional configurations support integration with the AP1302 Image Signal Processor (ISP) and remote camera modules over coax links. MCU-controlled sequencing ensures compliance with AR0823AT power-up and power-down requirements while maintaining low-noise operation for HDR imaging, LED flicker mitigation (LFM), and 4K video applications.

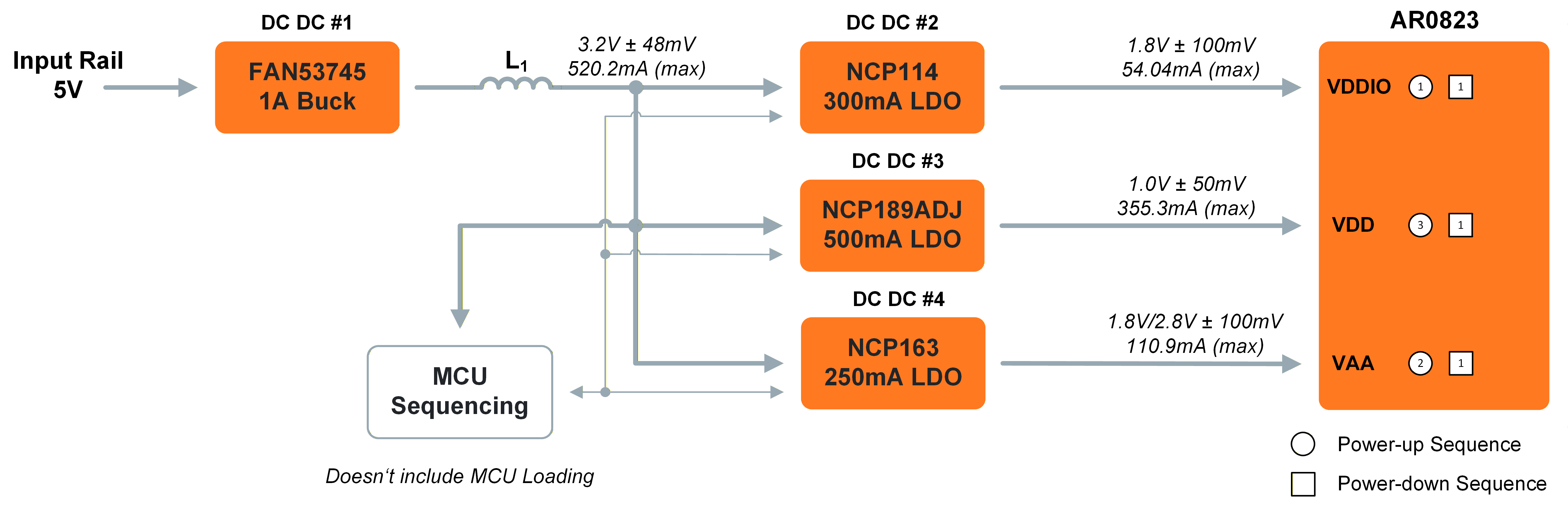

5V VIN Block Diagram

Part Number

Description

DCDC #

FAN53745

Buck Regulator, Synchronous, 3.33 MHz, 1 A (OPN: FAN53745UC00X)

DCDC #1

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #2

NCP189

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP189CMTWADJTAG)

DCDC #3

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #4

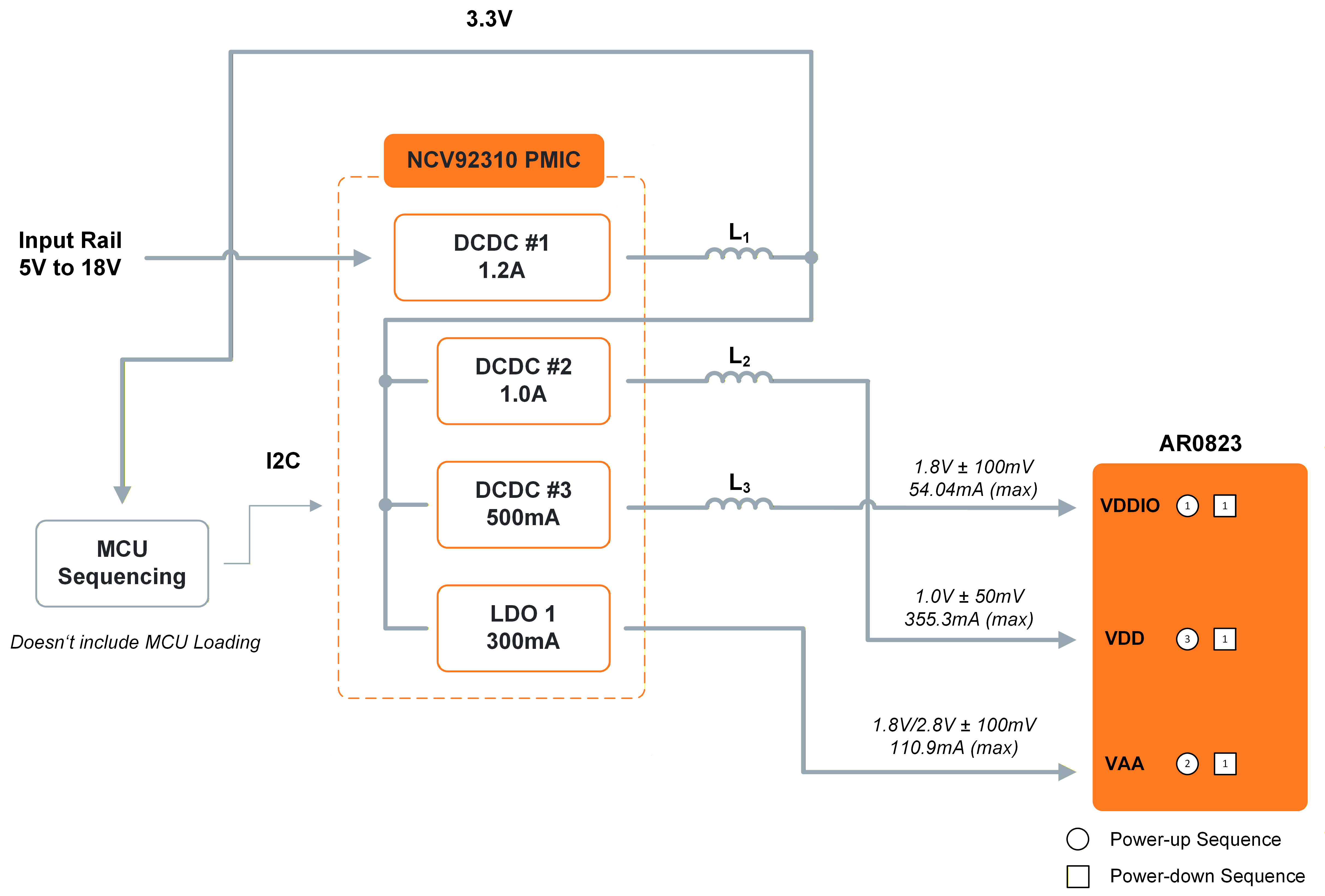

5V-18V VIN Block Diagram

Part Number

Description

DCDC #

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules. (OPN: NCV92310ABMTWTXG)

DCDC #1

48V VIN Block Diagram

Part Number

Description

DCDC #

FAN65004C

Synchronous PWM Buck Regulator, High Performance, Voltage Mode, 65 V, 6 A (OPN: FAN65004C)

DCDC #1

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #2

NCP189

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP189CMTWADJTAG)

DCDC #3

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #4

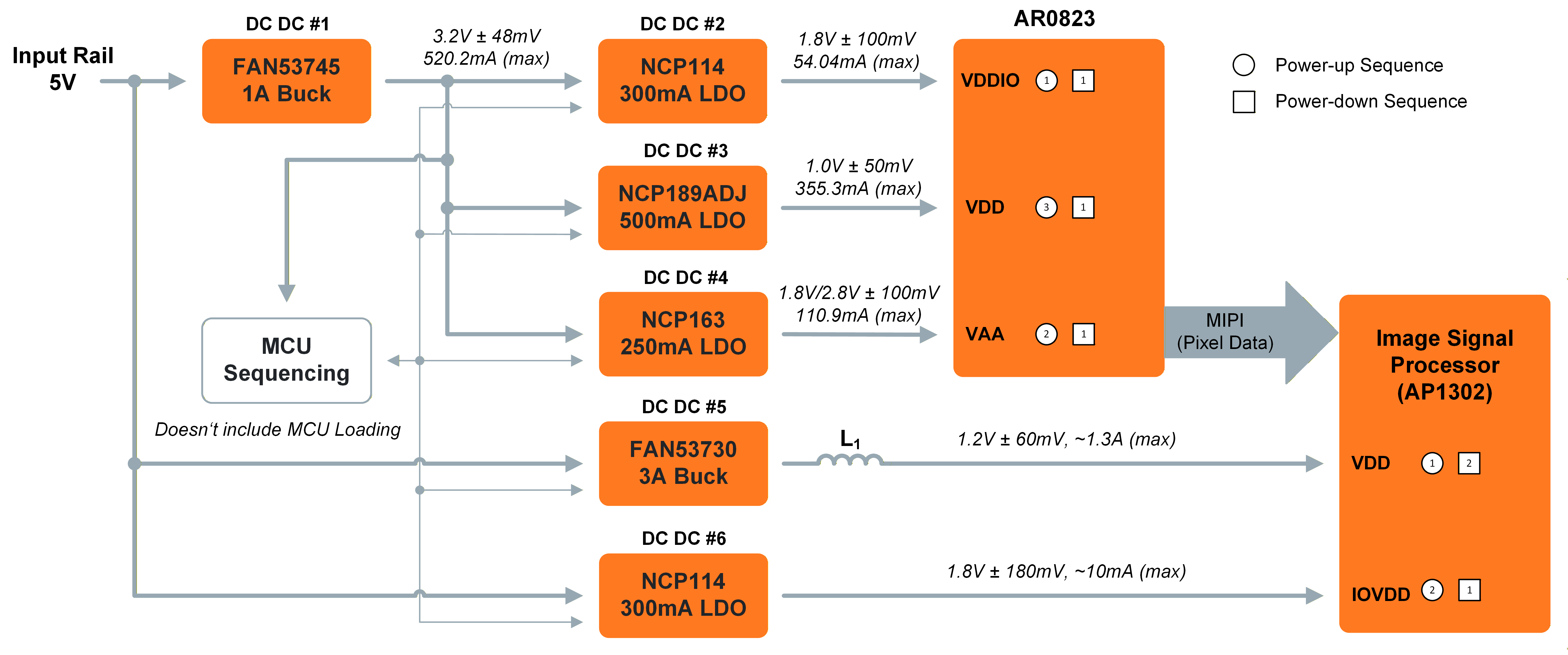

5V VIN Local ISP Block Diagram

Part Number

Description

DCDC #

FAN53745

Buck Regulator, Synchronous, 3.33 MHz, 1 A (OPN: FAN53745UC00X)

DCDC #1

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #2

NCP189

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP189CMTWADJTAG)

DCDC #3

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #4

FAN53730

3.0A, 2.7MHz, Digitally Programmable COT Buck Regulator (OPN: FAN53730UC01X)

DCDC #5

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #6

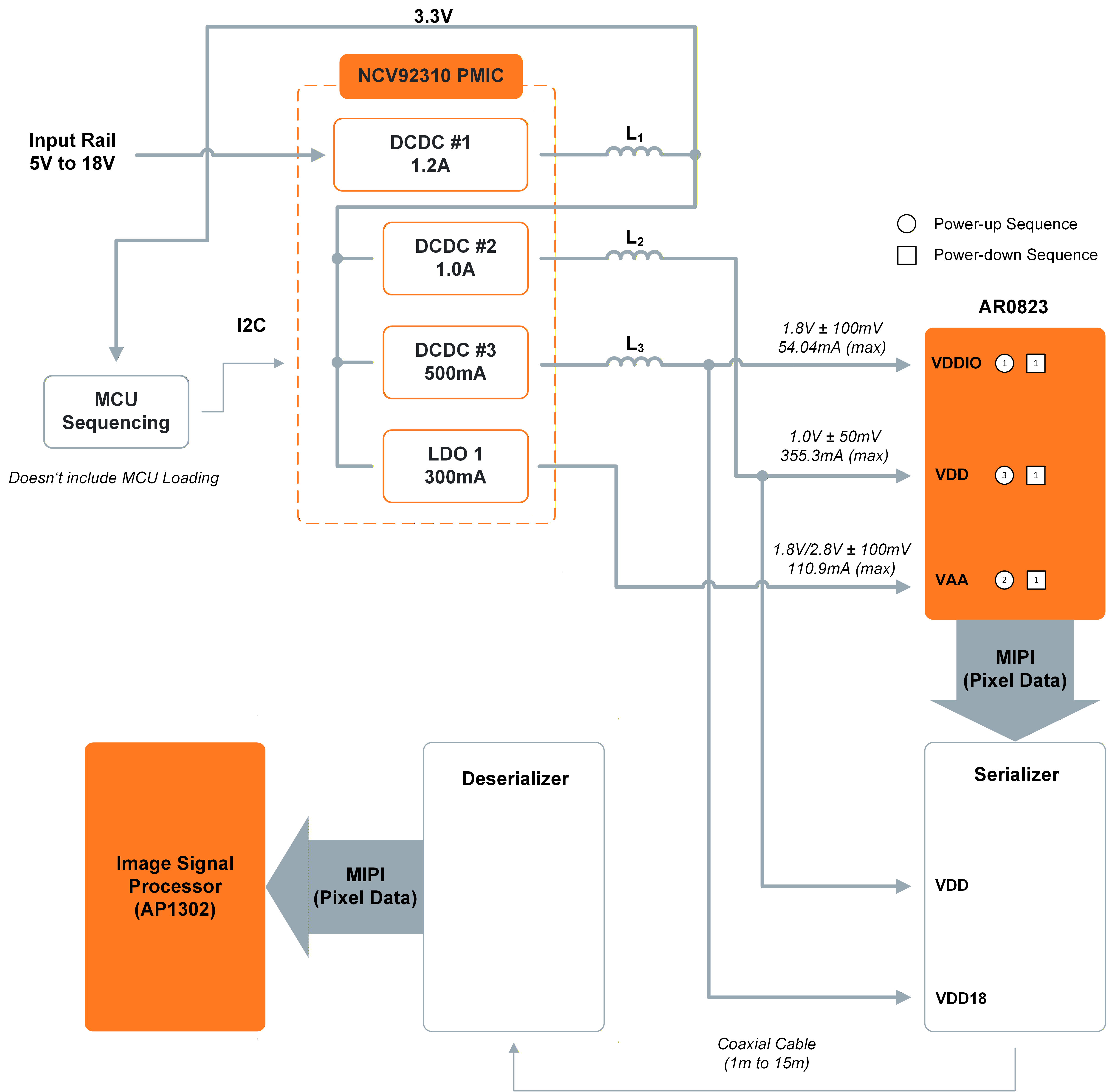

18V VIN Remote ISP Block Diagram

Part Number

Description

DCDC #

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules. (OPN: NCV92310ABMTWTXG)

DCDC #1
