ARX383 Power Tree

ARX383

Hyperlux Image Sensor Power-Tree combines advanced power management and cutting-edge image sensing technology, delivering smart energy solutions and cost savings for modern systems.

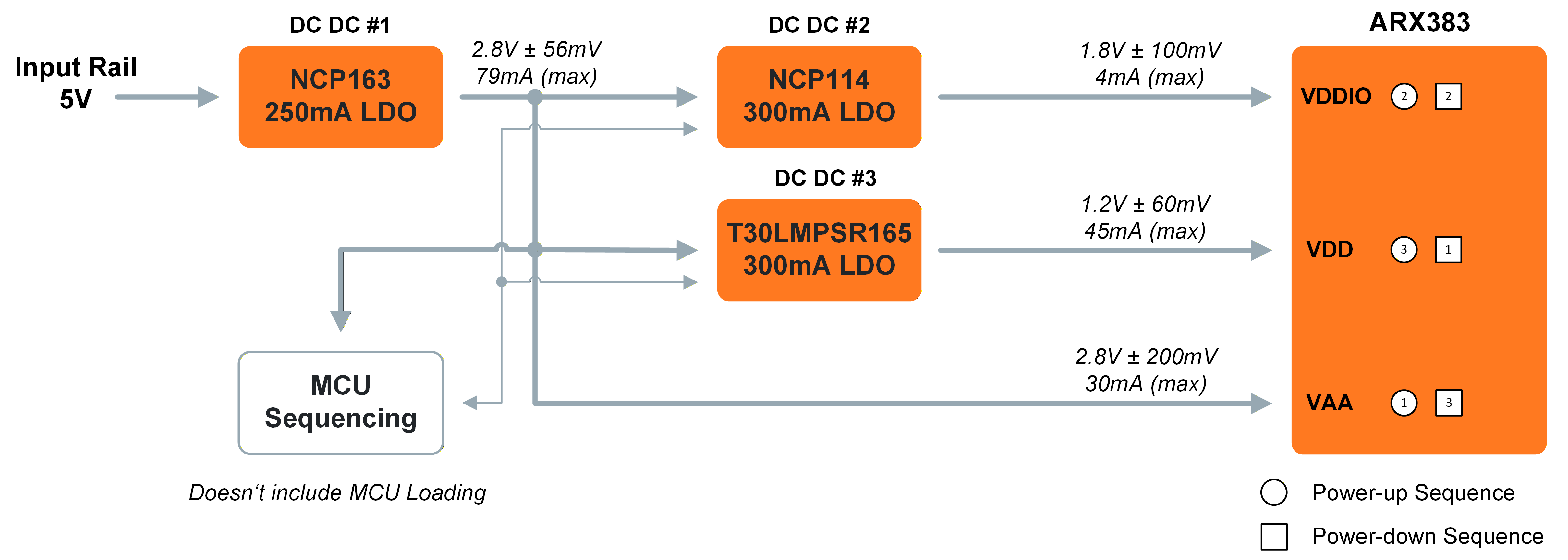

5V VIN Block Diagram

Part Number

Description

DCDC #

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise

DCDC #1

NCP114

LDO Regulator, 300 mA, High PSRR

DCDC #2

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

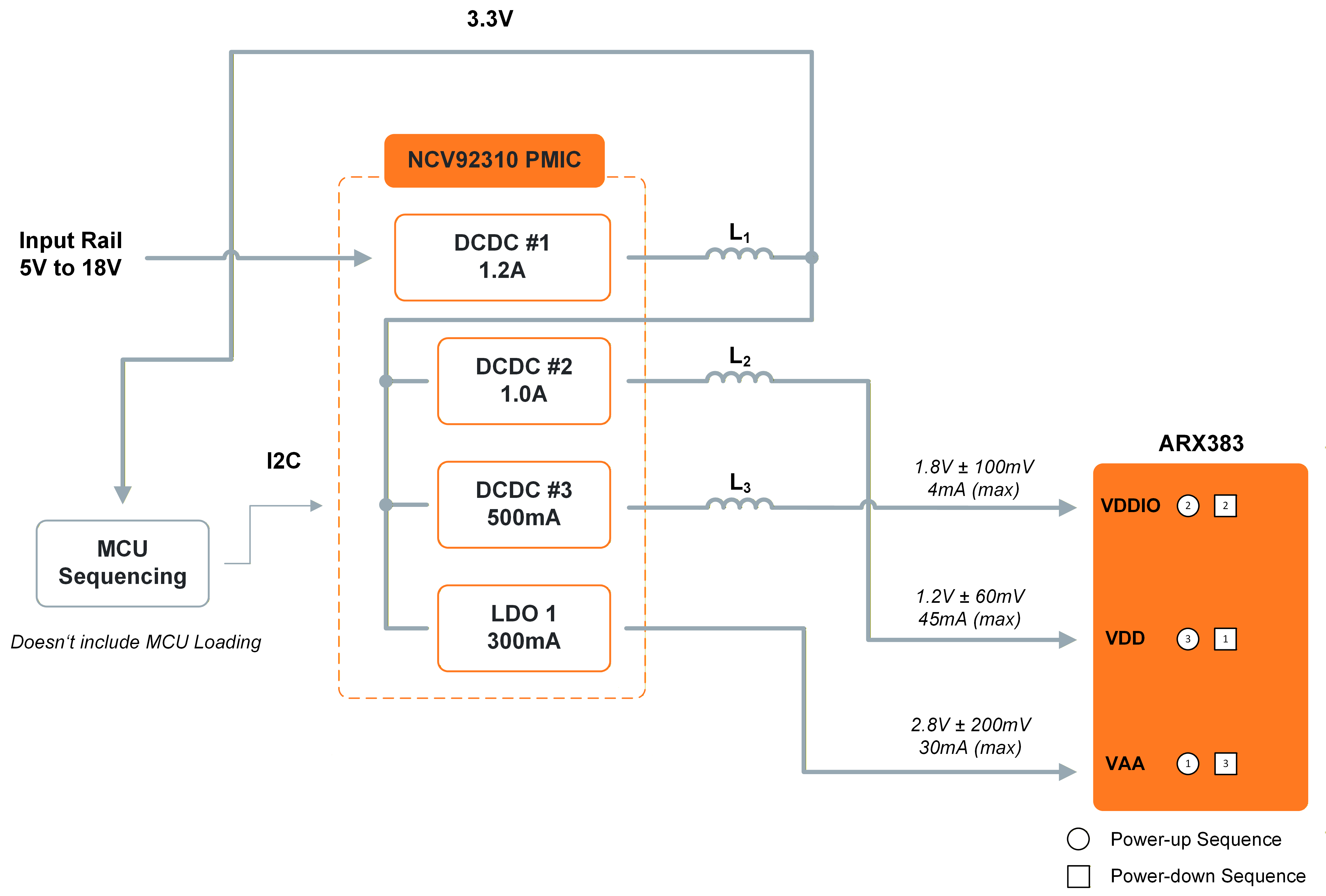

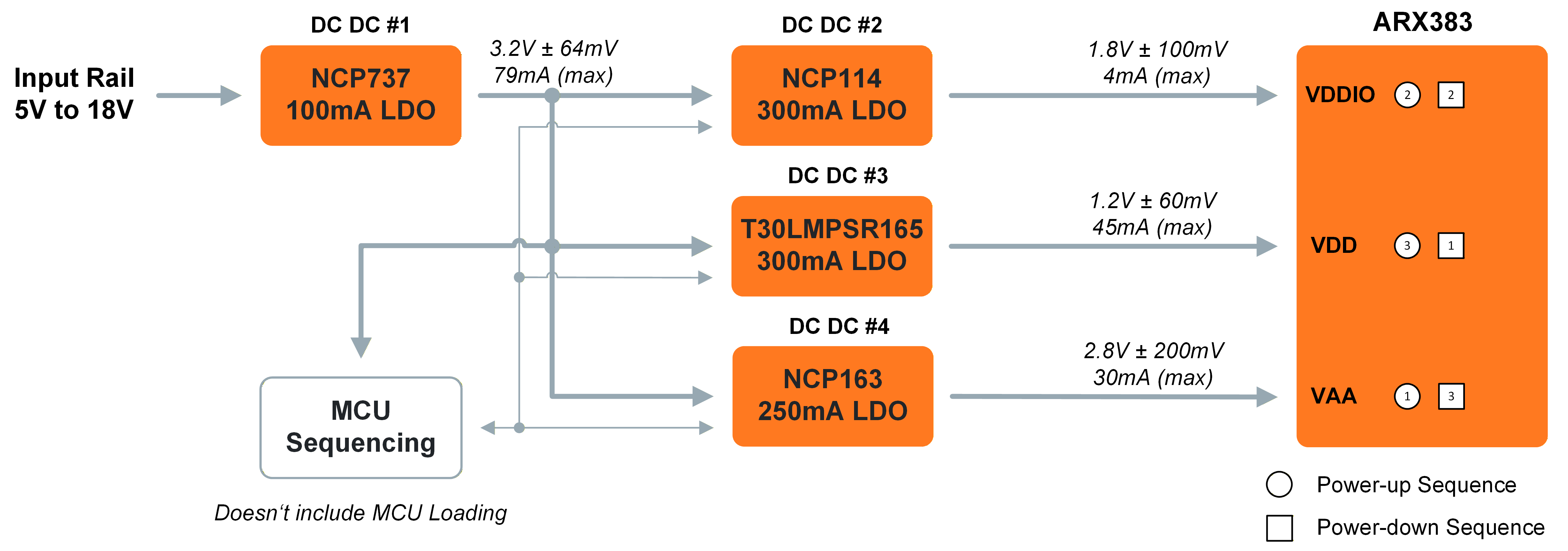

5V-18V VIN Block Diagram

Part Number

Description

DCDC #

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules.

DCDC #1

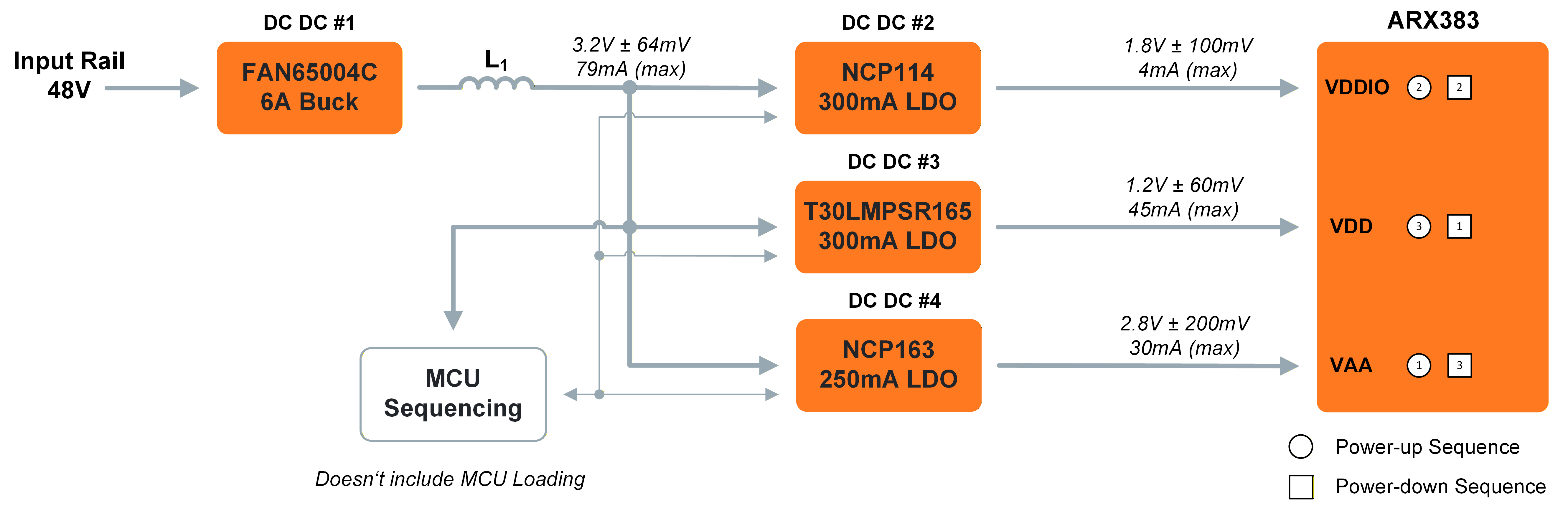

48V VIN Block Diagram

Part Number

Description

DCDC #

FAN65004C

Synchronous PWM Buck Regulator, High Performance, Voltage Mode, 65 V, 6 A

DCDC #1

NCP114

LDO Regulator, 300 mA, High PSRR

DCDC #2

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise

DCDC #4

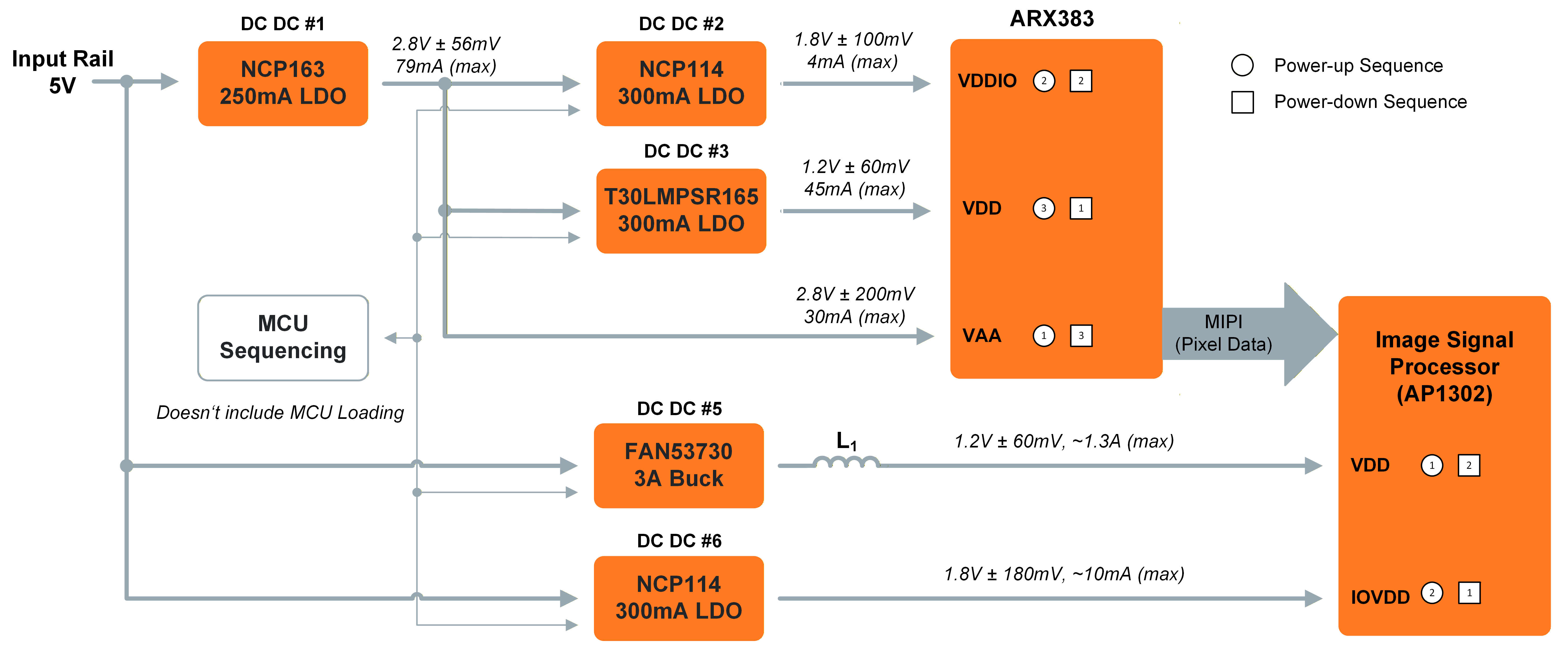

5V VIN Local ISP Block Diagram

Part Number

Description

DCDC #

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise

DCDC #1

NCP114

LDO Regulator, 300 mA, High PSRR

DCDC #2

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

FAN53730

3.0A, 2.7MHz, Digitally Programmable COT Buck Regulator

DCDC #4

NCP114

LDO Regulator, 300 mA, High PSRR

DCDC #5

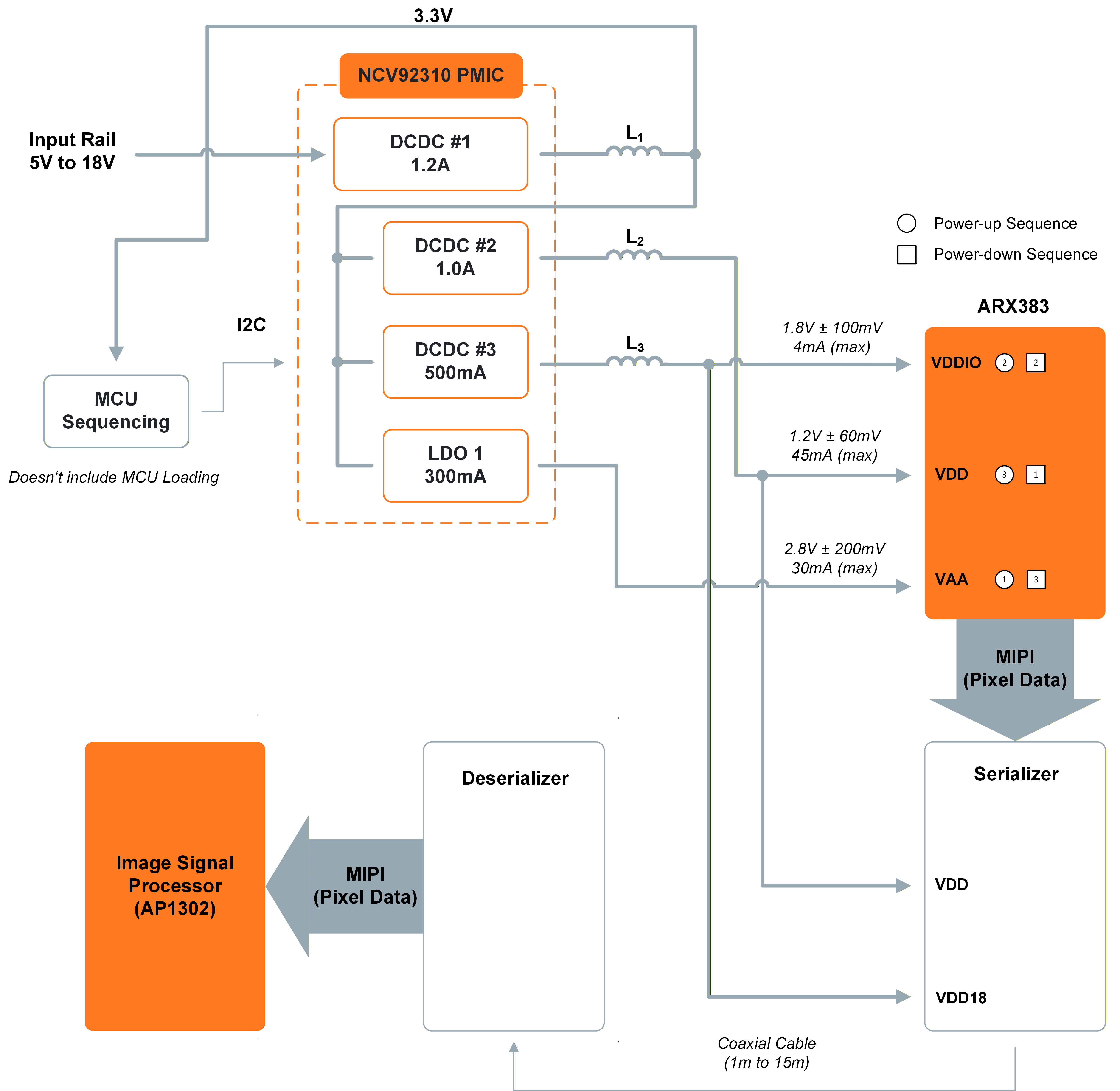

18V VIN Remote ISP Block Diagram

Part Number

Description

DCDC #

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules.

DCDC #1
