The AR0246 Hyperlux™ LH is a 2 MP BSI CMOS image sensor featuring 1920 × 1080 Full HD resolution at up to 60 fps. Designed for superior low-light performance, it combines enhanced NIR sensitivity, eHDR/HDR support, Wake-on-Motion (WOM), and ultra-low-power operation. Its advanced dynamic range capabilities and compact 1/4-inch format make it ideal for security cameras, smart vision systems, IoT devices, and industrial imaging applications.

Cost-effective Power Delivery Design for AR0246 Image Sensor

The AR0246 Hyperlux™ LH image sensor requires dedicated analog, digital core, and I/O supply rails. For 5 V input systems, the power tree uses NCP161, NCP114, T30LMPSR165, and NCP163 low-noise LDO regulators to generate the required voltage domains. For 5 V to 18 V power-over-coax applications, the highly integrated NCV92310 PMIC provides power conversion and sequencing in a single device, simplifying remote camera implementations. In 48 V industrial systems, a FAN65004C 6 A buck regulator generates an intermediate rail that feeds the downstream regulators. Additional configurations support integration with the AP1302 ISP for local or remote image processing. MCU-controlled sequencing ensures proper power-up and power-down timing, while the combination of efficient power conversion and ultra-low-noise regulation helps maximize low-light performance, dynamic range, and overall image quality.

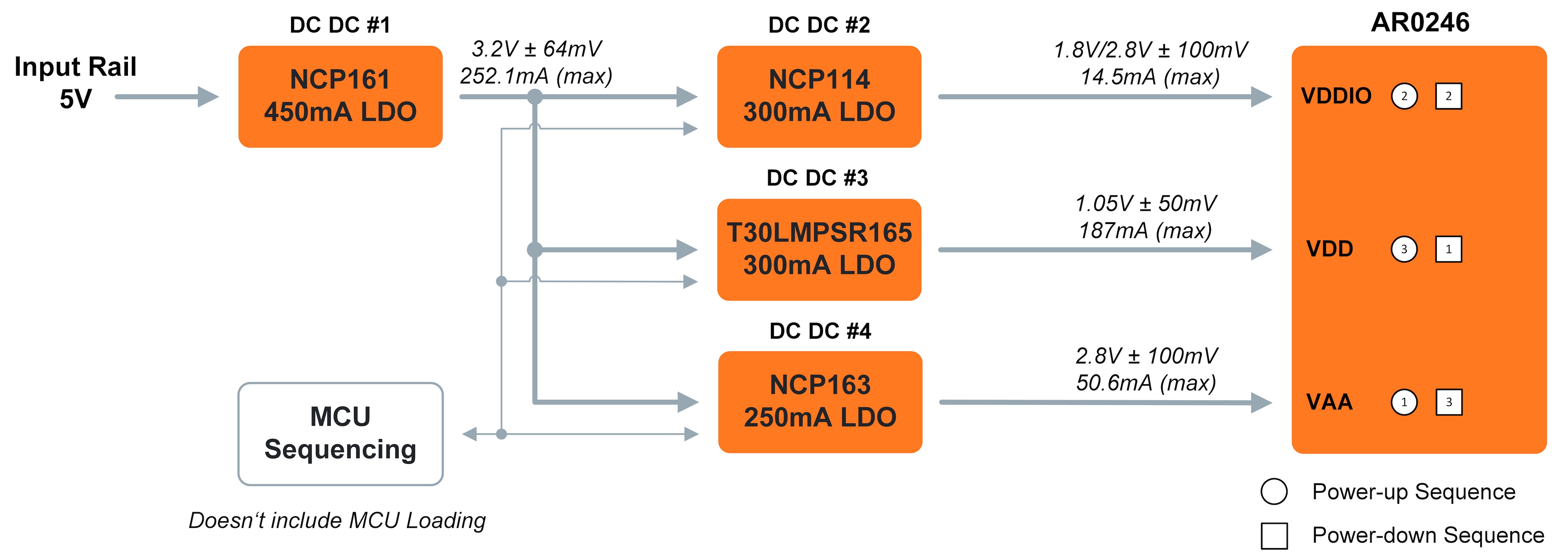

5V VIN Block Diagram

Part Number

Description

DCDC #

NCP161

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP161AFCS320T2G)

DCDC #1

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #2

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #4

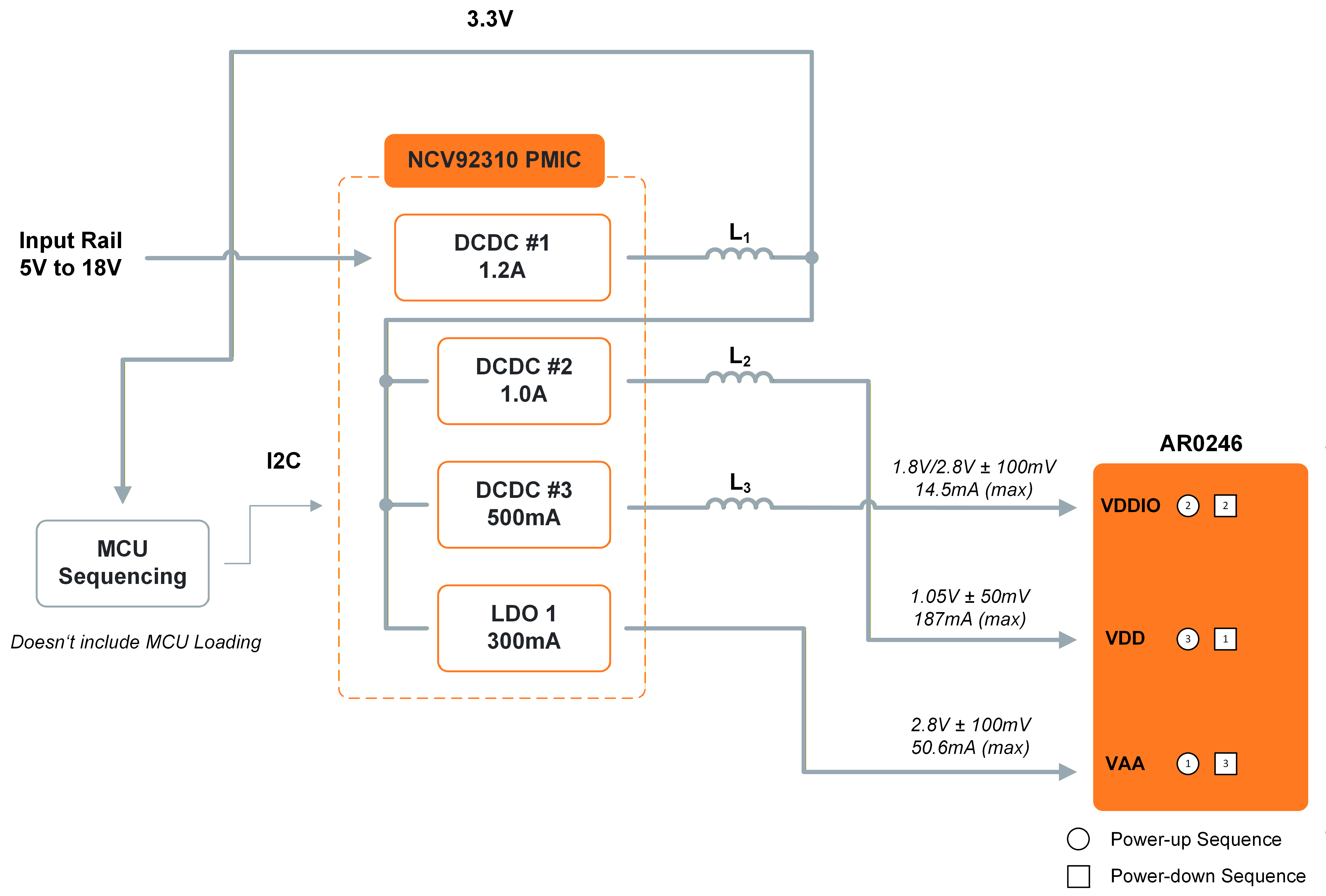

5V-18V VIN Block Diagram

Part Number

Description

DCDC #

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules. (OPN: NCV92310ABMTWTXG)

DCDC #1

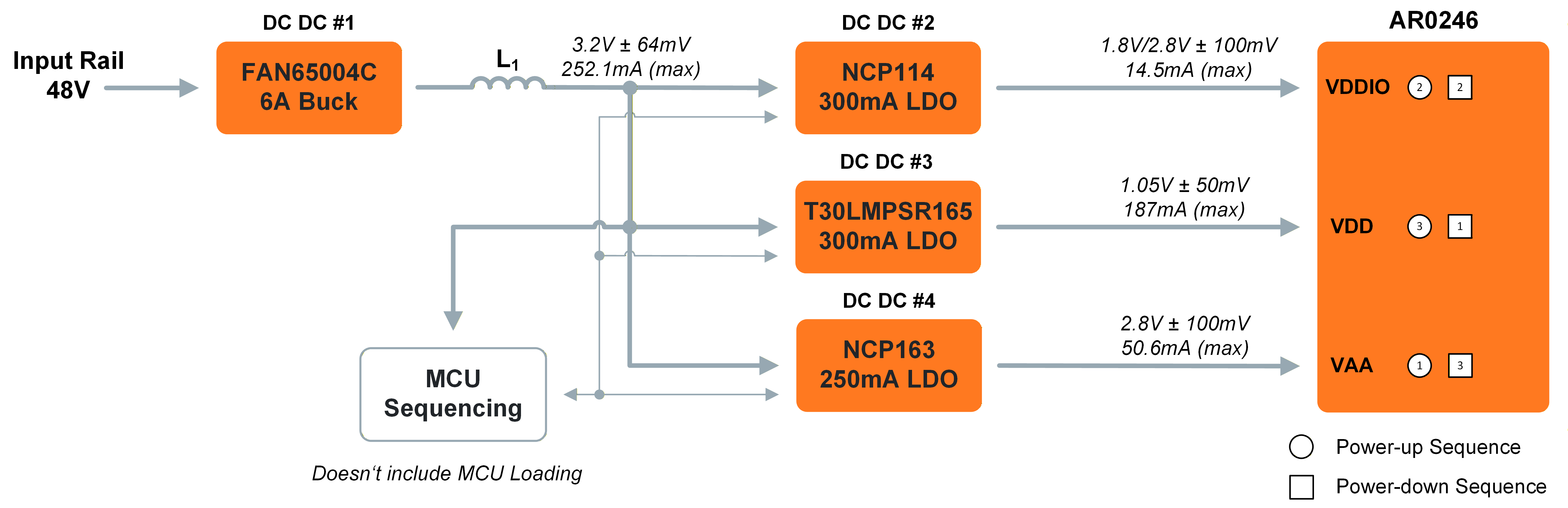

48V VIN Block Diagram

Part Number

Description

DCDC #

FAN65004C

Synchronous PWM Buck Regulator, High Performance, Voltage Mode, 65 V, 6 A (OPN: FAN65004C)

DCDC #1

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #2

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #4

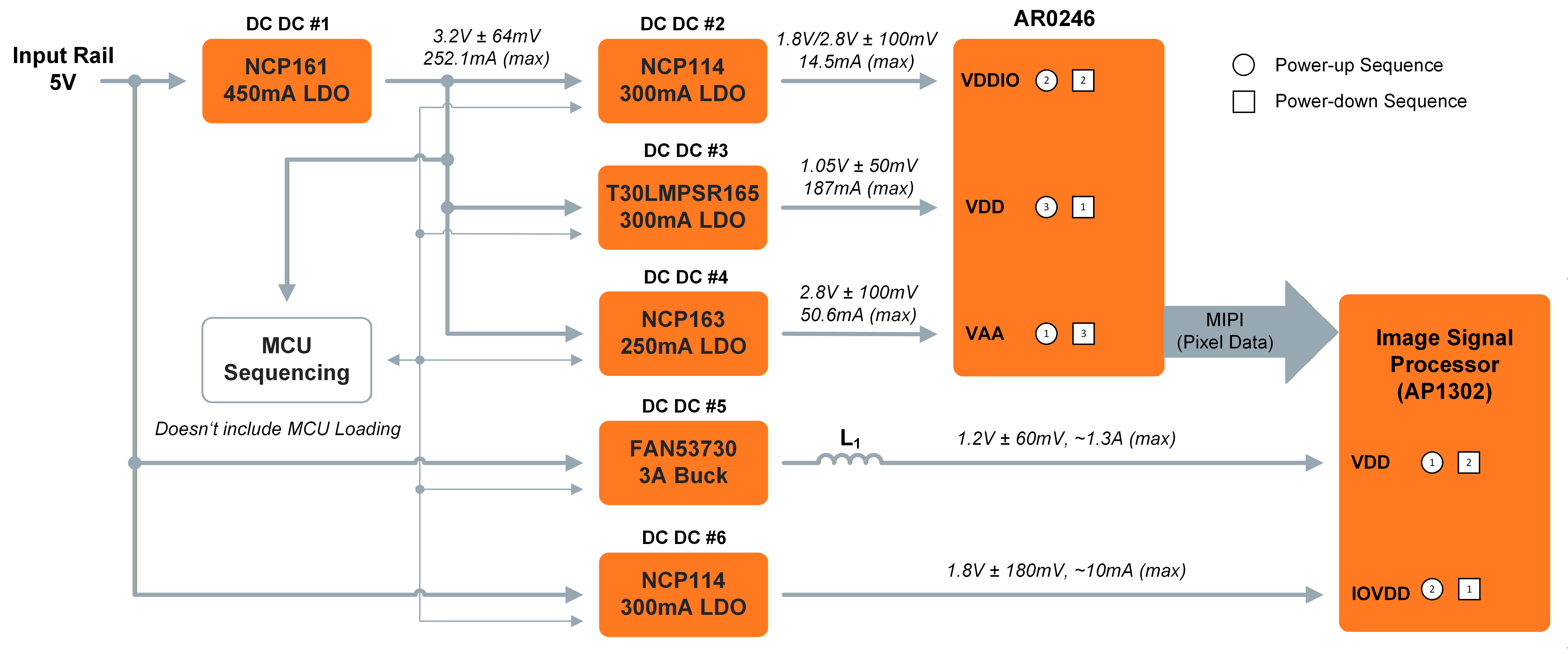

5V VIN Local ISP Block Diagram

Part Number

Description

DCDC #

NCP161

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP161AFCS320T2G)

DCDC #1

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #2

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #4

FAN53730

3.0A, 2.7MHz, Digitally Programmable COT Buck Regulator (OPN: FAN53730UC01X)

DCDC #5

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #6

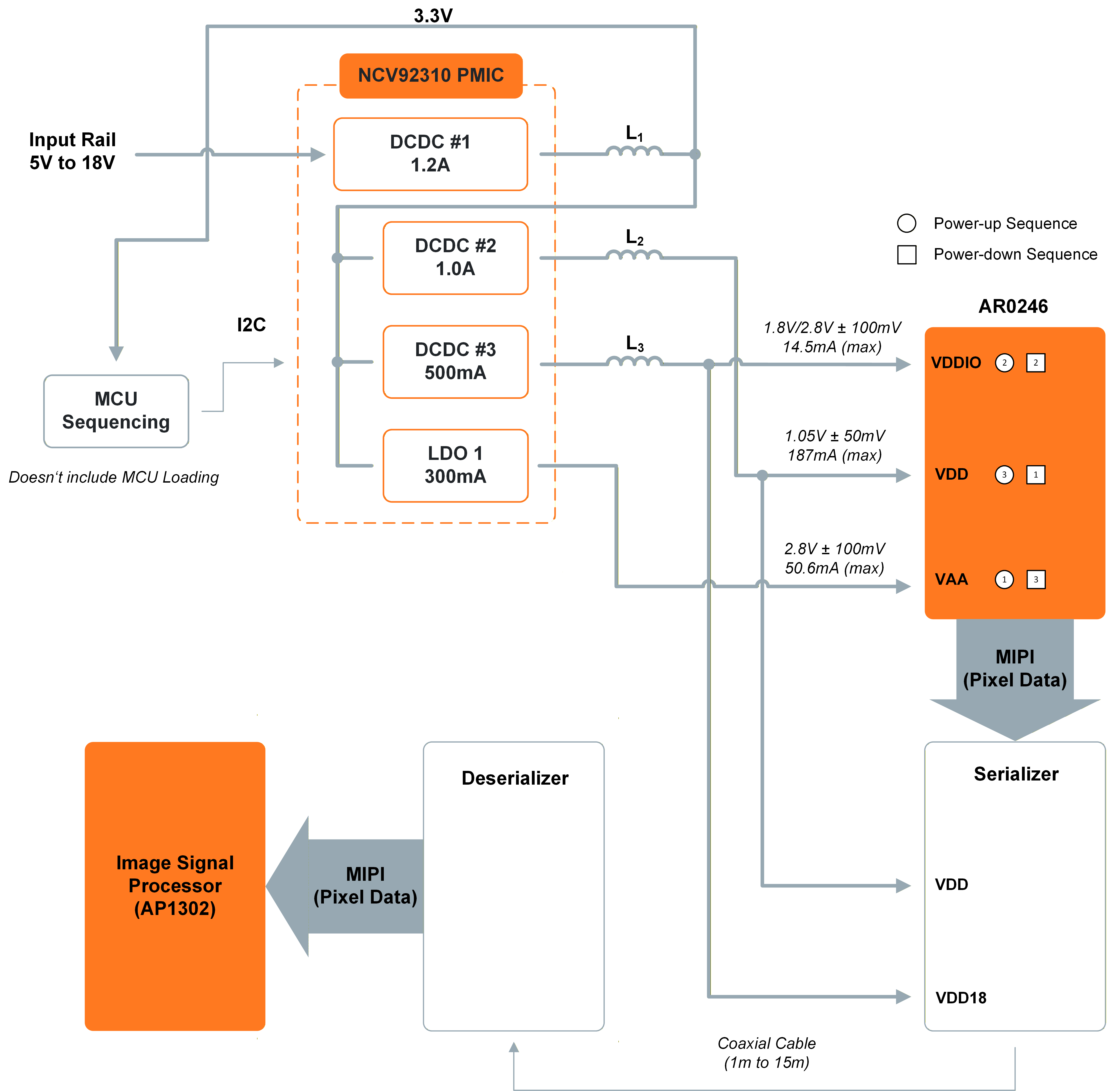

18V VIN Remote ISP Block Diagram

Part Number

Description

DCDC #

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules. (OPN: NCV92310ABMTWTXG)

DCDC #1

AR0246
