Non-hardware verified power tree for AMD (Xilinx) Artix 7 FPGA designs.

Efficient Power Delivery Design for AMD Artix 7 FPGAs

Simplify AMD Artix 7 power design with a reference architecture built around power management solutions from onsemi. The power tree combines synchronous buck regulators, low-noise LDOs, and DDR termination regulation. Devices including FAN251015, NCP3136, NCP189, and NCP59801 offer power conversion options with Enable and Power Good functions, providing a practical starting point for developing a multi-rail FPGA power supply.

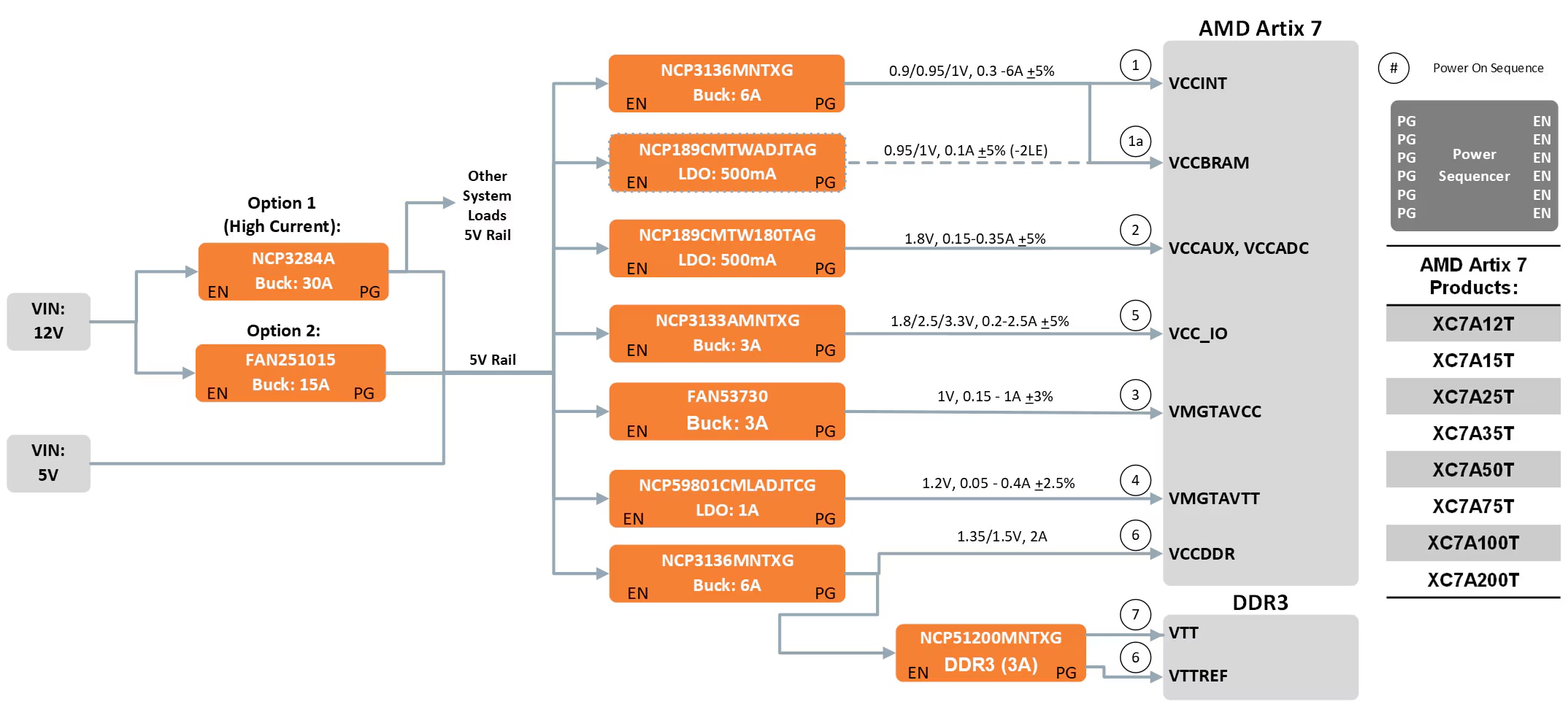

Block Diagram

Download Diagram

Please refer to the "Design Tools, Software and Chat AI" section of our Terms of Use.

divider image

Part Number

Descripton

Tools

Product Family

Synchronous buck regulator Enable / Power Good. VIN from 4.5V to 18V up to 35A load. 5x6mm PQFN37.

Synchronous buck regulator Enable / Power Good, PMBUS 1.3.1 Compatible. VIN from 4.5V to 18V up to 15A load. 5x7mm QFN34.

Synchronous buck regulator w/ Enable / Power Good. VIN from 2.9V to 5.5V up to 6A load. VOUT from 0.6V to 0.84 X VIN3x3mm QFN16.

NCP189CMTWADJTAG

500mA LDO, 0.6 to 5V Adjustable VOUT, with Enable / Power Good. WDFNW6_2x2mm

Linear Regulators (LDO)

NCP189CMTW180TAG

500mA LDO, 1.8V VOUT, with Enable / Power Good. WDFNW6_2x2mm

Linear Regulators (LDO)

Synchronous buck regulator EN and PG. VIN from 2.9V to 5.5V up to 3A load. 3x3mm QFN16

Synchronous buck regulator EN and PG. VIN from 2.3V to 5.5V, Vout from 0.3V to 2V, up to 3A load. 1.36x0.432mm WLCSP12

Available Soon

NCP59801CMLADJTCG

1A LDO, 1.2V VOUT, with Enable / Power Good WDFNW6_2x2mm

Linear Regulators (LDO)

Source/sink Double Data Rate (DDR1, 2, 3) 3A termination regulator.

Available Soon

DDR Termination Regulators
