The AR0235 Hyperlux™ SG is a 2.3 MP global shutter CMOS image sensor featuring a 1/2.8-inch optical format and 1920 × 1200 resolution at up to 120 fps. Its 2.8 μm pixel architecture delivers excellent low-light performance and accurate capture of fast-moving scenes, while the global shutter design eliminates motion distortion. The sensor is well suited for machine vision, robotics, industrial automation, barcode scanning, intelligent transportation, and embedded vision applications.

Jump to
5V VIN 5V-18V VIN 48V VIN 5V VIN Local ISP 18V VIN Remote ISP

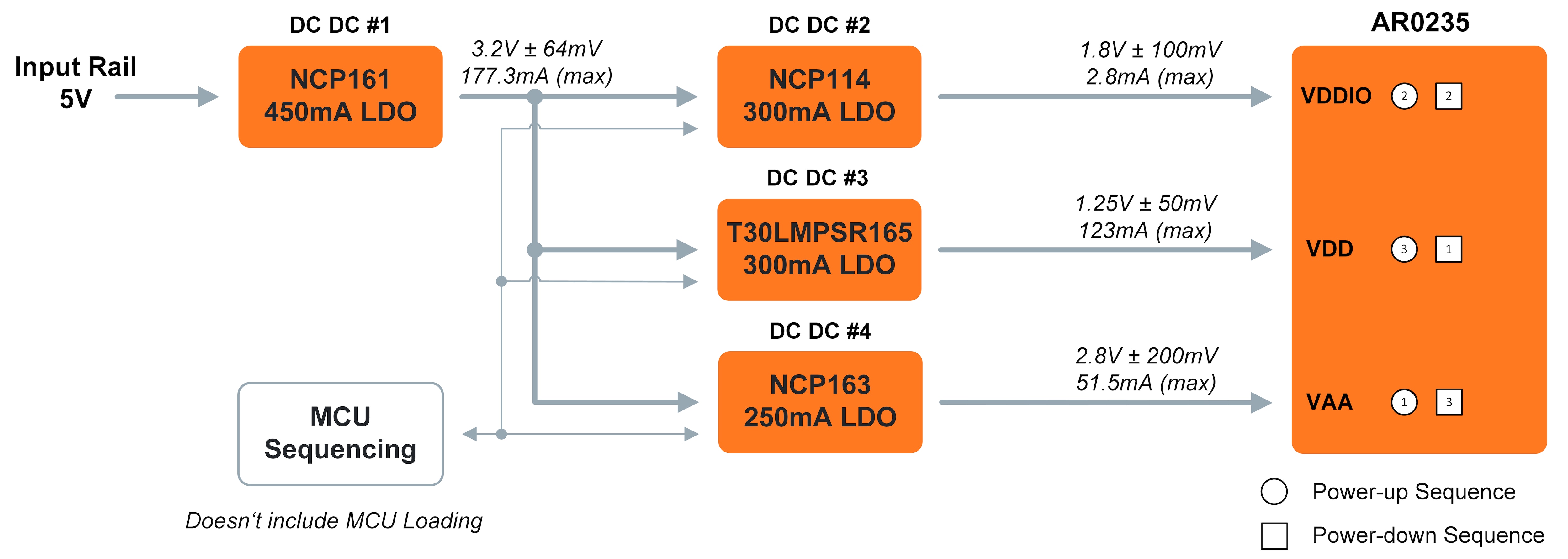

5V VIN Block Diagram

divider image

Part Number

Description

DCDC #

Loading...

NCP161

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP161AFCS320T2G)

DCDC #1

More Details

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #2

More Details

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

More Details

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #4

More Details

More Details

Show More

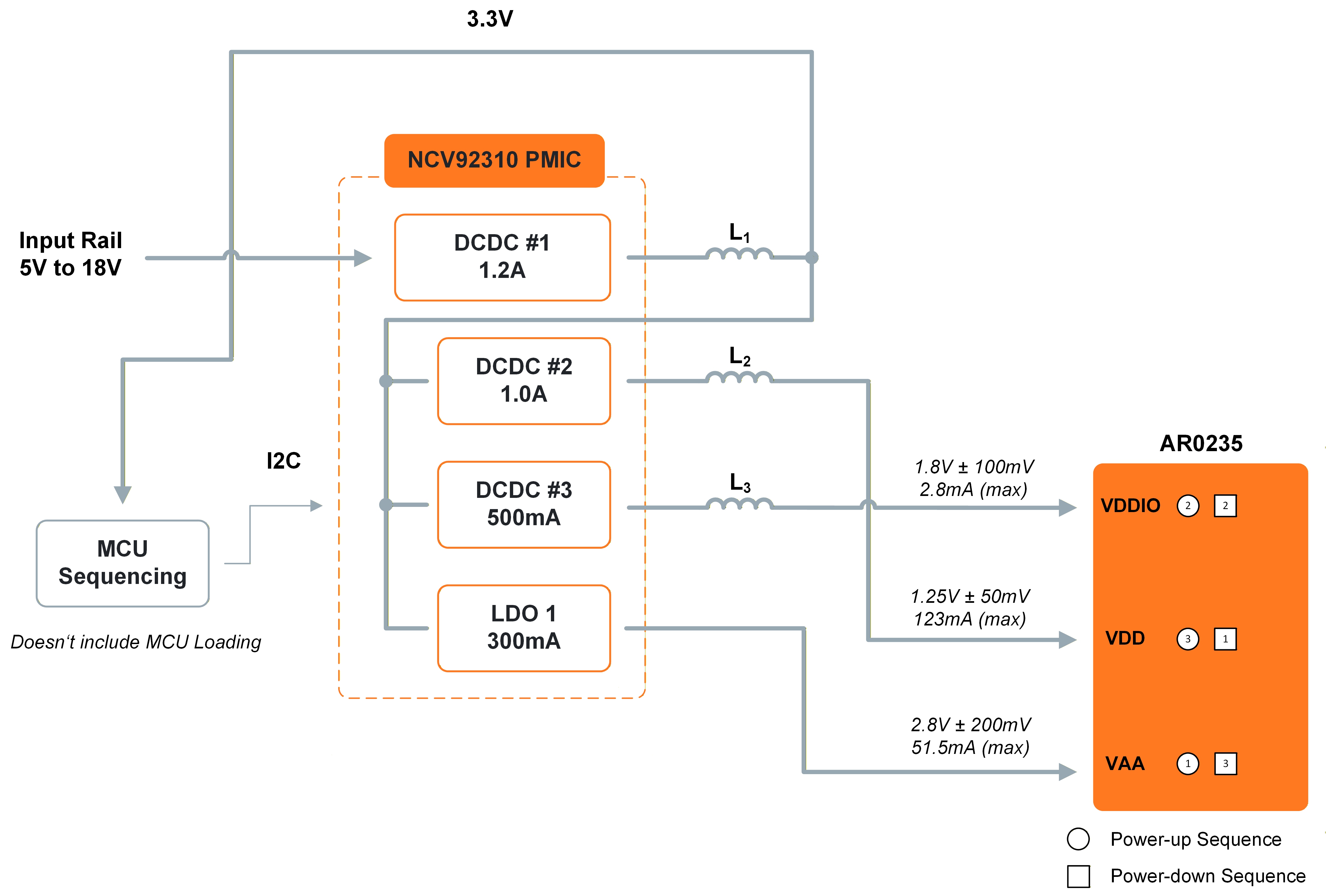

5V-18V VIN Block Diagram

divider image

Part Number

Description

DCDC #

Loading...

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules. (OPN: NCV92310ABMTWTXG)

DCDC #1

More Details

More Details

Show More

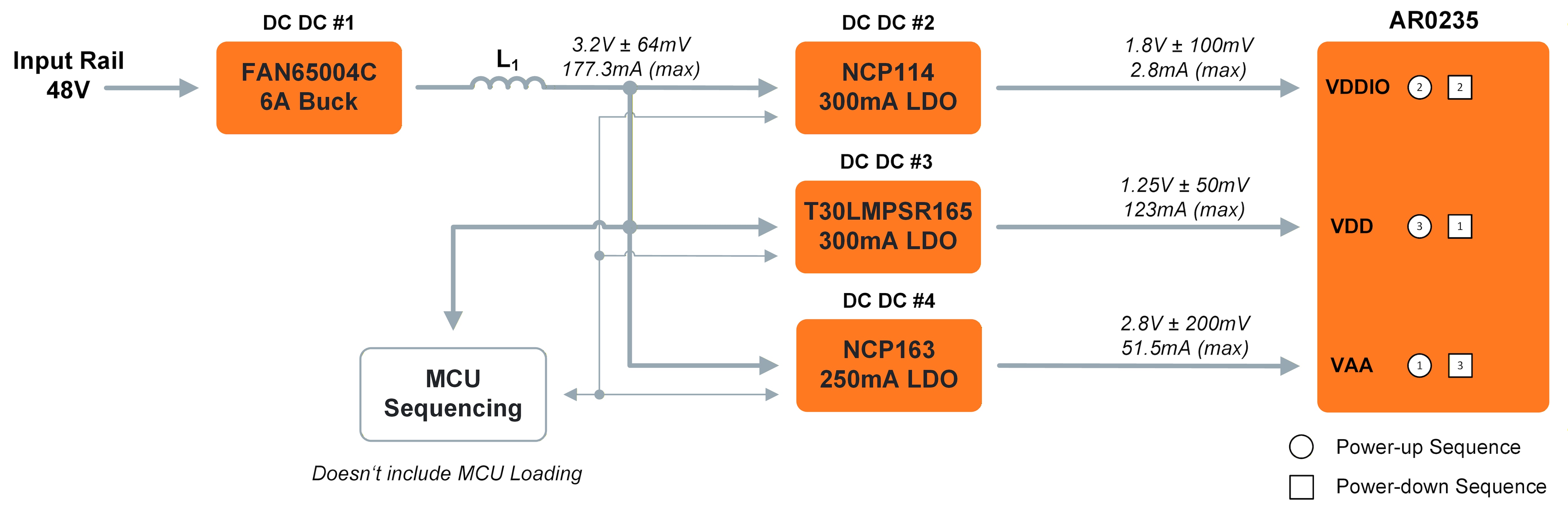

48V VIN Block Diagram

divider image

Part Number

Description

DCDC #

Loading...

FAN65004C

Synchronous PWM Buck Regulator, High Performance, Voltage Mode, 65 V, 6 A (OPN: FAN65004C)

DCDC #1

More Details

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #2

More Details

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

More Details

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #4

More Details

More Details

Show More

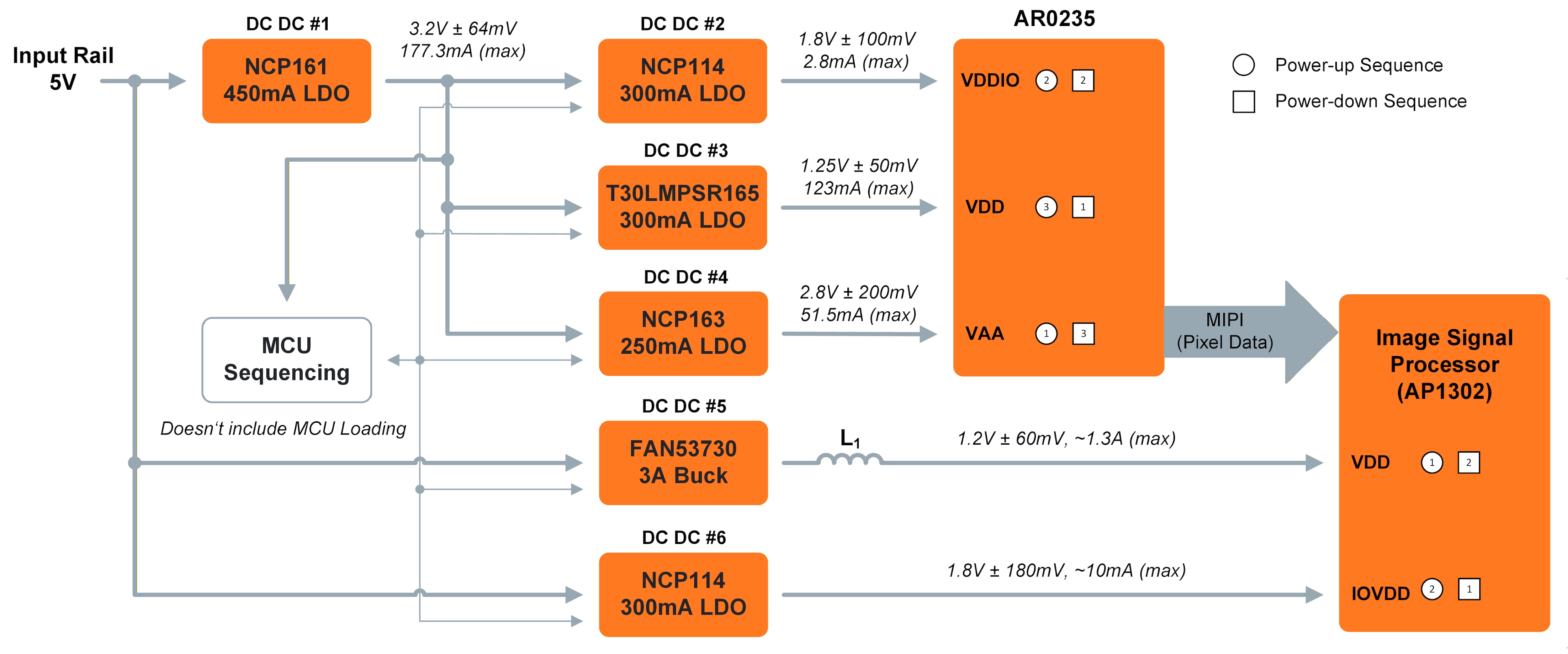

5V VIN Local ISP Block Diagram

divider image

Part Number

Description

DCDC #

Loading...

NCP161

LDO Regulator, 450 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP161AFCS320T2G)

DCDC #1

More Details

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #2

More Details

T30LMPSR165

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

More Details

NCP163

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise (OPN: NCP163AFCS280T2G)

DCDC #4

More Details

FAN53730

3.0A, 2.7MHz, Digitally Programmable COT Buck Regulator (OPN: FAN53730UC01X)

DCDC #5

More Details

NCP114

LDO Regulator, 300 mA, High PSRR (OPN: NCP114AMX180TBG)

DCDC #6

More Details

More Details

Show More

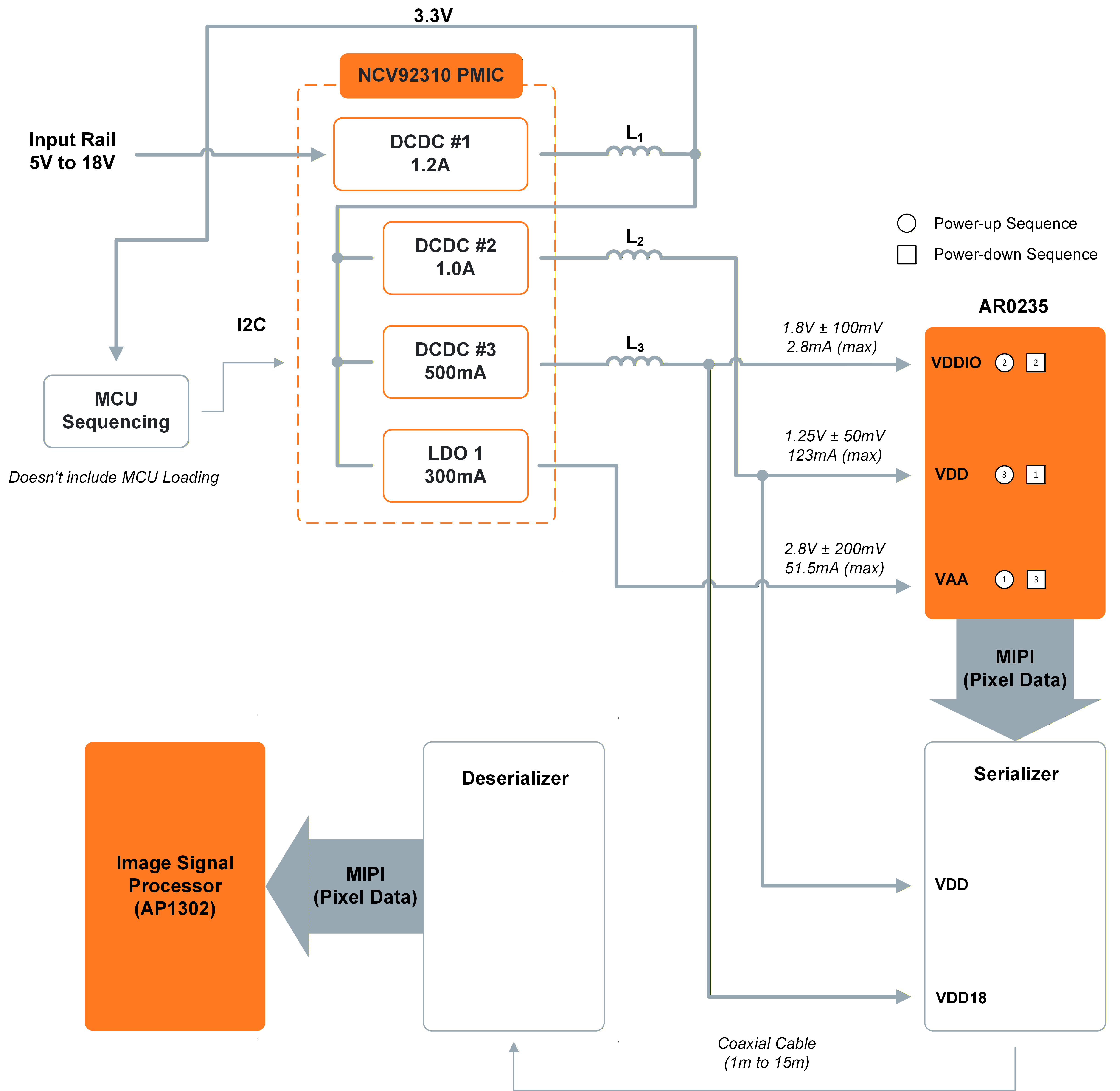

18V VIN Remote ISP Block Diagram

divider image

Part Number

Description

DCDC #

Loading...

NCV92310

Highly integrated PMIC optimized for power over coax sensor modules. (OPN: NCV92310ABMTWTXG)

DCDC #1

More Details

More Details

Show More

Cost-effective Power Delivery Design for AR0235 Image Sensor

The AR0235 Hyperlux™ SG image sensor requires dedicated analog, digital core, and I/O supply rails. For 5 V input systems, the power tree uses NCP161, NCP114, T30LMPSR165, and NCP163 low-noise regulators to generate the required voltage domains. For 5 V to 18 V power-over-coax applications, the highly integrated NCV92310 PMIC provides power conversion and sequencing in a single device, simplifying remote camera designs. In 48 V industrial systems, a FAN65004C 6 A buck regulator generates an intermediate supply rail that feeds the downstream regulators. Additional configurations support integration with the AP1302 ISP for local or remote image processing. MCU-controlled sequencing ensures proper power-up and power-down timing, while the combination of efficient power conversion and ultra-low-noise regulation maximizes image quality, global shutter performance, and system reliability.
