AF0130

The power tree is designed to support three different input voltages starting from 5V, 18V and 48V while enabling flexible powering through LDOs, Buck Converters and PMIC. It also provides power for onsemi's local ISP and remote ISP via the PMIC, ensuring optimized performance across diverse configurations.

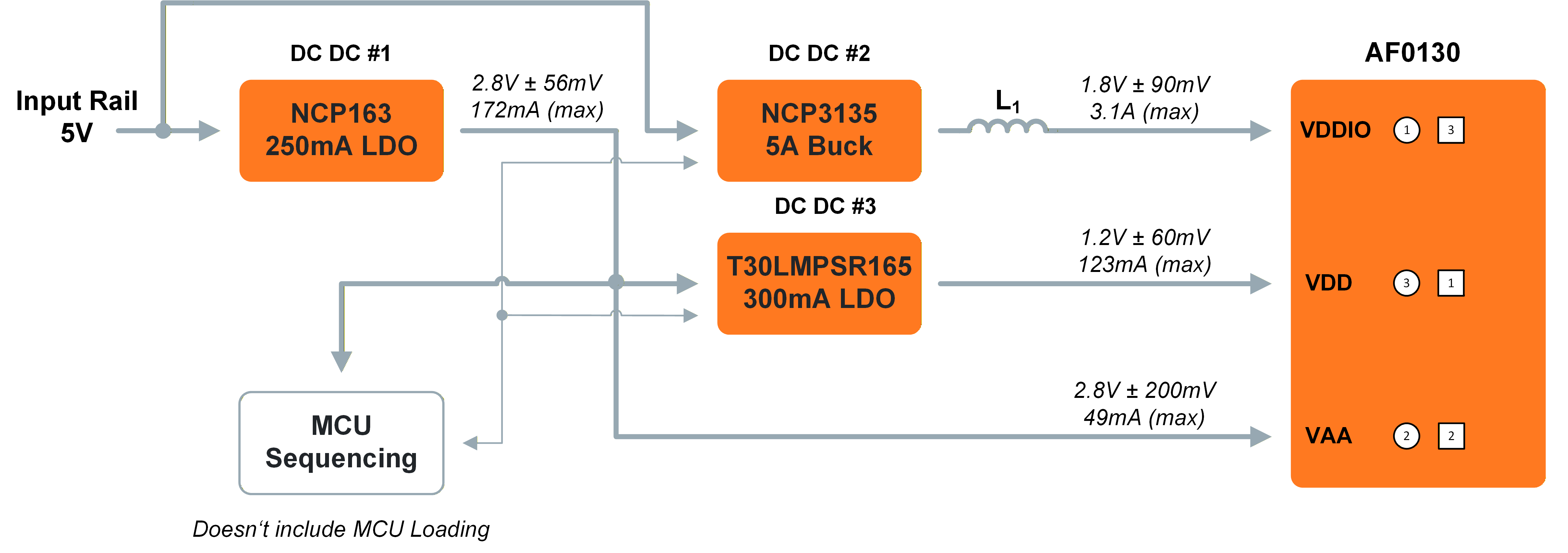

5V VIN AF0130 Block Diagram

divider image

Part Number

Description

DCDC #

Loading...

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise

DCDC #1

More Details

2.9V to 5.5V, 5A Integrated Synchronous DC-DC Step Down Converter

DCDC #2

More Details

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

More Details

More Details

Show More

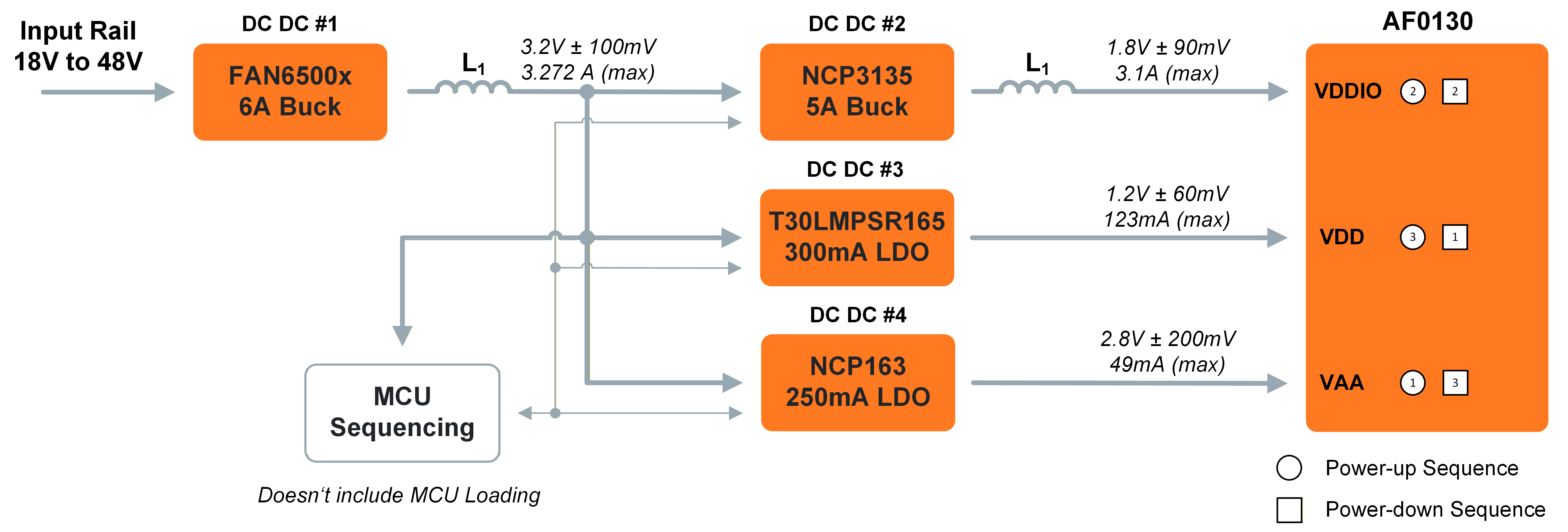

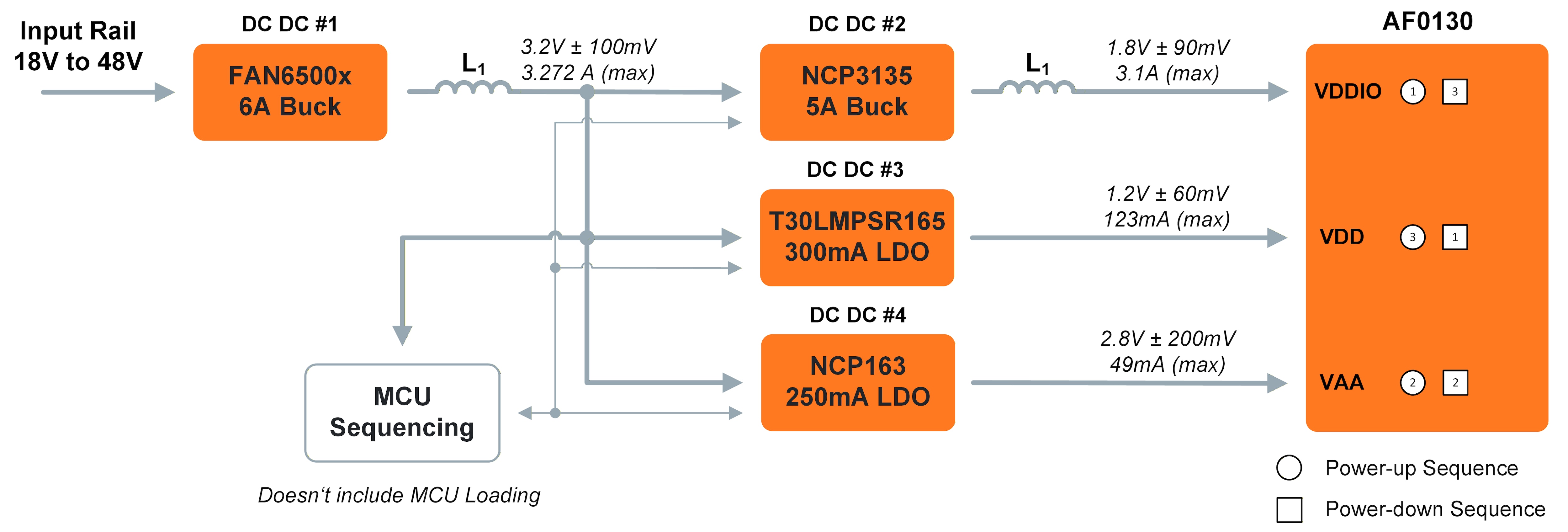

18V-48V VIN Block Diagram

divider image

Part Number

Description

DCDC #

Loading...

Synchronous PWM Buck Regulator, High Performance, Voltage Mode, 65 V, 6 A

DCDC #1

More Details

2.9V to 5.5V, 5A Integrated Synchronous DC-DC Step Down Converter

DCDC #2

More Details

LDO Regulator, 300 mA, Drop Out Voltage (26mV), Ultra-Fast Transient response

DCDC #3

More Details

LDO Regulator, 250 mA, Ultra-High PSRR, Ultra-Low Noise

DCDC #4

More Details

More Details

Show More
