Whether you're dealing with low-power sensor interfaces, high-speed data acquisition, or precision instrumentation, the amplifier you choose can significantly impact your system’s ability to maintain signal integrity and overall performance.
With a wide array of amplifier types and architectures available, understanding how to select the right one for your application is key.
Challenge: Balancing Versatility and Cost with General-Purpose Amplifiers
A frequent challenge for designers involves finding components that offer sufficient flexibility and cost-efficiency for a wide array of signal conditioning tasks, particularly when ultra-high precision is not the primary requirement. This is often the case in basic signal conditioning circuits, various automotive subsystems and battery-powered devices.
General-purpose operational amplifiers (op-amps) are specifically designed to address this by offering reliable performance with low power consumption, making them an excellent choice for projects where flexibility and cost-effectiveness are priorities. Examples include devices like the PMOS based LM358, which are well-established bipolar devices that have proven their enduring value in the industry over many decades. An example of a CMOS general purpose Amplifier is the NCS20072, available in a variety of compact packages.
Challenge: Conquering Accuracy and Stability Challenges with Zero-Drift Amplifiers
In applications where even minuscule errors can have significant consequences, designers face the critical challenge of maintaining exceptionally high accuracy and stability over wide temperature ranges and extended operational periods. This is particularly vital in fields such as medical devices, industrial instrumentation, IoT applications, and motor control feedback systems.
To meet these stringent demands, specialized amplifier categories offer solutions:
Zero-drift amplifiers
A key challenge is the inherent drift in offset voltage due to temperature variations and aging. Zero-drift architectures, found in devices like the NCS21911, are engineered to counter this drift, maintaining precision and long-term stability regardless of environmental fluctuations.

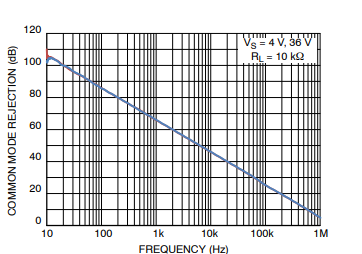

These amplifiers often incorporate features like rail-to-rail input and output capabilities and low quiescent current, which further enhance both accuracy and power efficiency in demanding applications. Furthermore, an outstanding common-mode rejection ratio (CMRR) is a crucial characteristic, effectively suppressing unwanted common-mode noise, which is vital when interfacing with analog-to-digital converters (ADCs) for superior data acquisition. The typical CMRR of NCS21911 is 130dB at 4V.
Challenge: Addressing Precise Current Monitoring in Dynamic Power Systems
Accurate current monitoring poses a unique set of challenges across diverse applications, including power management, battery-powered systems (such as smartphones, notebook computers, and electric vehicles), and automotive safety diagnostics. Designers require solutions that can precisely measure current across a wide range of common-mode voltages while simultaneously minimizing power dissipation and bill-of-materials (BOM) costs.
Current sense amplifiers are specifically developed to tackle these challenges:
Wide common-mode voltage range
A significant hurdle is measuring current in high-side configurations, where the shunt resistor is not referenced to ground. This necessitates amplifiers capable of handling large common-mode input voltages, often up to 40V for some models or even 80V for others like the NCS7031 or NCV7031(Automotive) and NCS7041 or NCV7041 (Automotive). his capability is essential for both high-side and low-side current sensing, providing design flexibility and enabling the detection of load shorts in high-side applications.
High accuracy and low offset
Precision in current measurement is paramount. These amplifiers typically feature very low offset voltages (e.g., ±12 µV maximum for the Treo Platform and zero-drift architectures) ensuring accurate readings even with minimal voltage drops across shunt resistors. This design choice helps minimize power loss from the shunt while maintaining measurement integrity.
Integration and cost-effectiveness

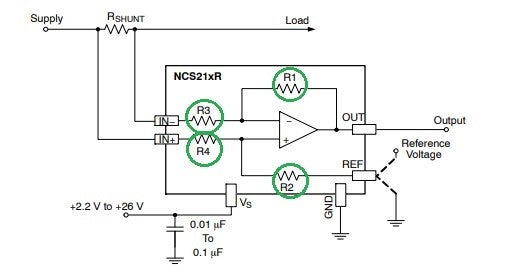

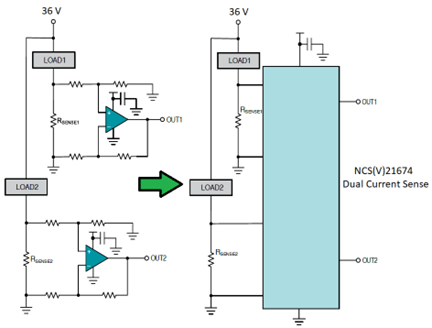

The ongoing demand to reduce board space and BOM costs is critical. Some current sense amplifier solutions integrate gain-setting resistors, simplifying the design and reducing the number of external components. For instance, devices like the NCS214R and NCS(V)2167x offer this feature. Additionally, these devices can support unidirectional or bidirectional current sensing, which is crucial for applications like battery chargers where current flow can reverse.
Challenge: Overcoming Universal Design Constraints with Advanced Amplifier Attributes
Beyond addressing specific amplifier types, several overarching challenges commonly confront electronic designs, and modern amplifier solutions offer key attributes to overcome them:
Reliability in Harsh Environments
Many applications, particularly in the automotive sector (Advanced Driver-Assistance Systems (ADAS), motor control, and battery management systems), demand components that can withstand extreme temperatures (up to 150°C for some devices coming soon in the Treo Platform ) and demanding electrical conditions. Achieving automotive-grade qualifications, such as AEC-Q100 and PPAP capable, is critical for ensuring that components like the NCV210R and the NCV333 meet these rigorous reliability requirements.
Energy Efficiency
The drive for extended battery life and reduced power consumption in portable devices, IoT, and industrial systems necessitates amplifiers with ultra-low quiescent currents, sometimes as low as tens of microamperes for op-amps or even nanoamperes for comparators, such as the Treo Platform with 315 nA per channel. This minimal power footprint is achieved without compromising performance.
Space Optimization
Miniaturization is a constant demand in modern electronics. Amplifier solutions available in compact packages, such as CSPs (Chip Scale Packages) and uQFNS (micro Quad-Flat No-lead) for the Treo Platform , help designers significantly reduce board space, which is essential for applications like smartphones and wearable electronics.
Fast Response and Control
In dynamic systems like motor control and power regulation, rapid signal processing is vital. Comparators coming soon from Treo Platform feature fast propagation delays of 40 ns and fast transient responses, enabling precise and timely control, crucial for system stability and performance.
Matching Amplifier Capabilities to Application Demands
Selecting the right amplifier for an electronic design is much like choosing the right tool for a specific task in a complex construction project. Just as a specialized tool enables a craftsman to perform a delicate or challenging operation with precision and efficiency, different amplifier architectures are engineered with distinct capabilities to address unique challenges in electronic circuits.
Whether it's the need for broad versatility, pinpoint accuracy in a fluctuating environment, or precise current monitoring in a power system, understanding the specific design challenge allows engineers to leverage the specialized attributes of modern amplifier portfolios, such as those built on the advanced Treo Platform, to bring their electronic visions to fruition.
