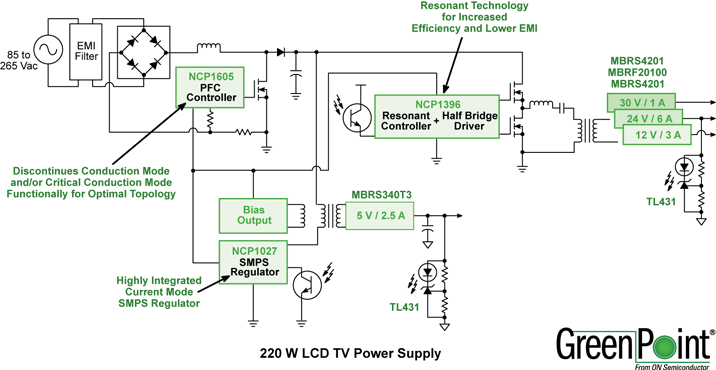

220 W LCD TV Power Supply Reference Design

• A High-Efficiency GreenPoint® Solution
• Active mode efficiency: 88.2% @ 115 Vac; 90.6% @ 230 Vac
• Standby mode consumption (@ output power = 500 mW): 873 mW @ 230 Vac; 735 mW @ 115 Vac
• Power factor controlled, meets IEC 61000-3-2 requirements

Supporting Documents

• LCD TV Power Supply Documentation Package
• Power Factor Correction Handbook
• NCP1605 PFC Boost Design Worksheet

Industry Information

• IEC 61000-3-2 Requirements
