RSL10 Smart Shot Camera
Combining cloud-based AI with ultra-low-power triggered image capture, the RSL10 Smart Shot Camera enables next-generation IoT imaging applications including surveillance cameras, factory automation, and smart agriculture.
Using the RSL10 Smart Shot Camera, developers can create imaging applications that automatically capture an image when triggered by various elements including time or environmental changes such as motion, humidity or temperature. The platform can operate in low power mode while monitoring a specific part of its field of view, automatically taking an image when the scene's contents change. The image can be sent to the provided mobile application over Bluetooth® Low Energy, allowing for connectivity to cloud or AI recognition services.
Where to Start With Event Triggered Imaging?

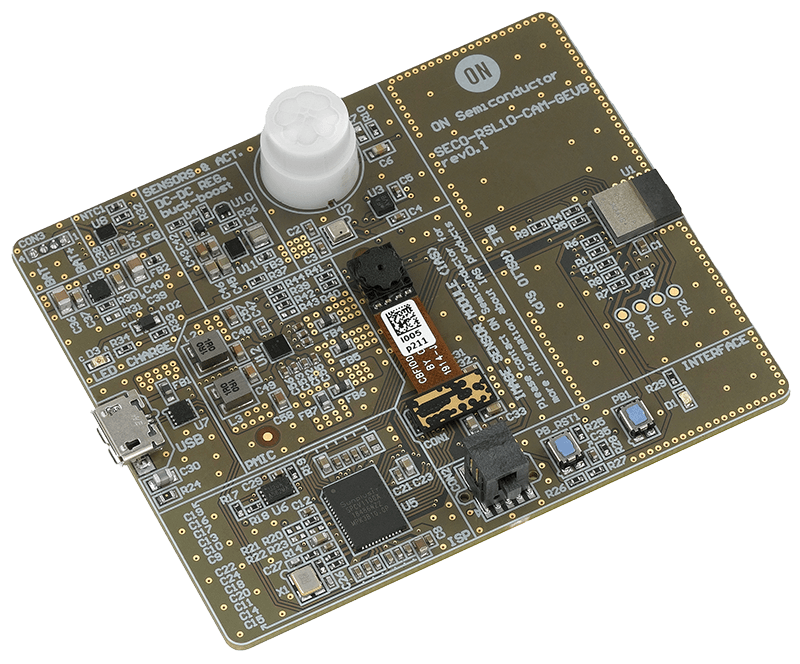

The RSL10 Smart Shot Camera is a complete node-to-cloud platform that enables smart image capture for portable, low duty cycle IoT applications including asset monitoring and security. Based on the RSL10 SIP and ARX3A0 CMOS image sensor, the platform features multiple trigger modes including time (intervals ranging from 10 seconds to 1 minute), motion detection, and environmental sensor triggers (e.g. changes in temperature and humidity).
RSL10 Smart Shot App

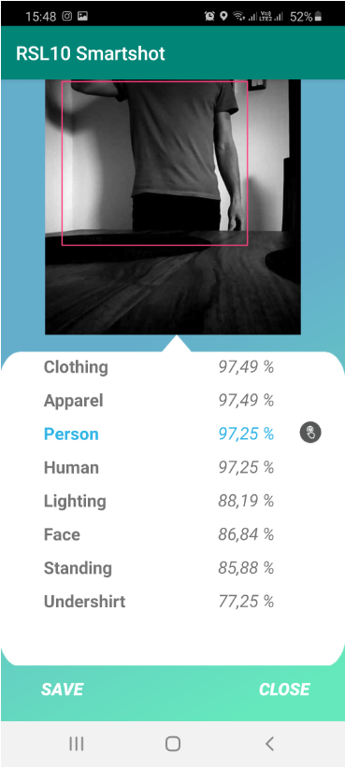

The RSL10 Smart Shot App is a reference gateway application that communicates with the RSL10 Smart Shot Camera over Bluetooth Low Energy and connects the camera to Amazon AWS Recognition services. Using the app, developers can control the camera by setting multiple trigger conditions, monitor the images and perform object classification using AWS services. The App is available on both Android and iOS platforms.

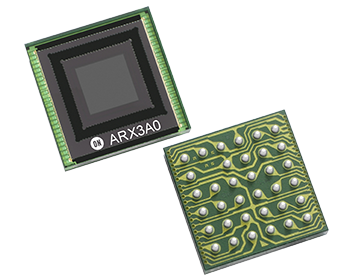

ARX3A0 Mono 65° DVOF IAS Module
Ultra Low Power Pseudo Global Shutter Sensor has a small optical format capable of 360 fps, superior low-light performance, dual ROI and many more attributes and modes
1.3 MP Low Power IoT Camera Image Sensor Processor supporting CMOS image sensor interfaces. Provides JPEG compression and color processing engines.
Bluetooth 5 connectivity SoC serves as the processing hub of the system, communicating data between the sensors, ISP, mobile app and more
USB-compatible single-cell, linear Li-Ion battery charger
Buck Boost Controller
Low dropout regulator
Motion, Temperature, Time, Humidity, & Acceleration Sensors from Bosch & Panasonic.
Event-Triggered Image Capture
The RSL10 Smart Shot Camera can be triggered using a variety of sensors including motion & temperature. When ‘triggered’, the camera takes, processes, and sends the image over Bluetooth® Low Energy to a connected device.
Bluetooth® Low Energy

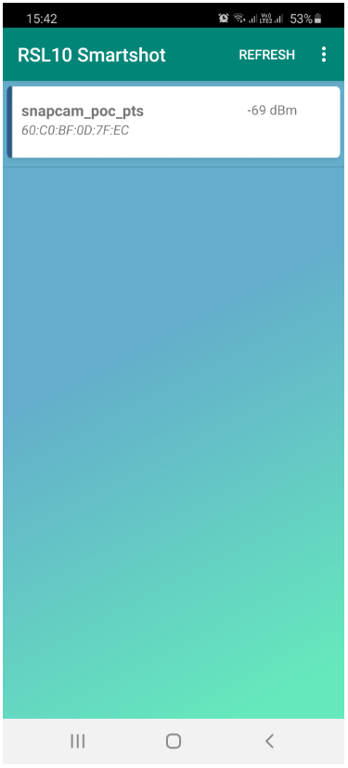

Bluetooth Low Energy is used to control and receive images from the camera to a mobile app. The camera also supports Firmware Over the Air (FOTA) updates.
App-Based Developer Control

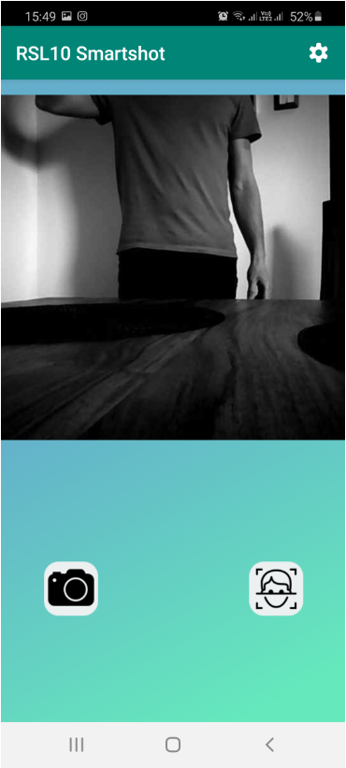

Using the provided mobile app, developers can control triggers, connectivity or image capture settings or connect to or connect to Amazon Recognition to analyze images.
Safety Helmet Camera
Monitor employee saftey and log data in the field.
In-Car Cabin Monitor
Monitor rear seats on in dash display or mobile phone.
Monitor health and growth of crops in a greenhouse
Automotive Accident Identification
Use “acceleration” and “proximity” sensors to sense when a collision is likely.
