Overview

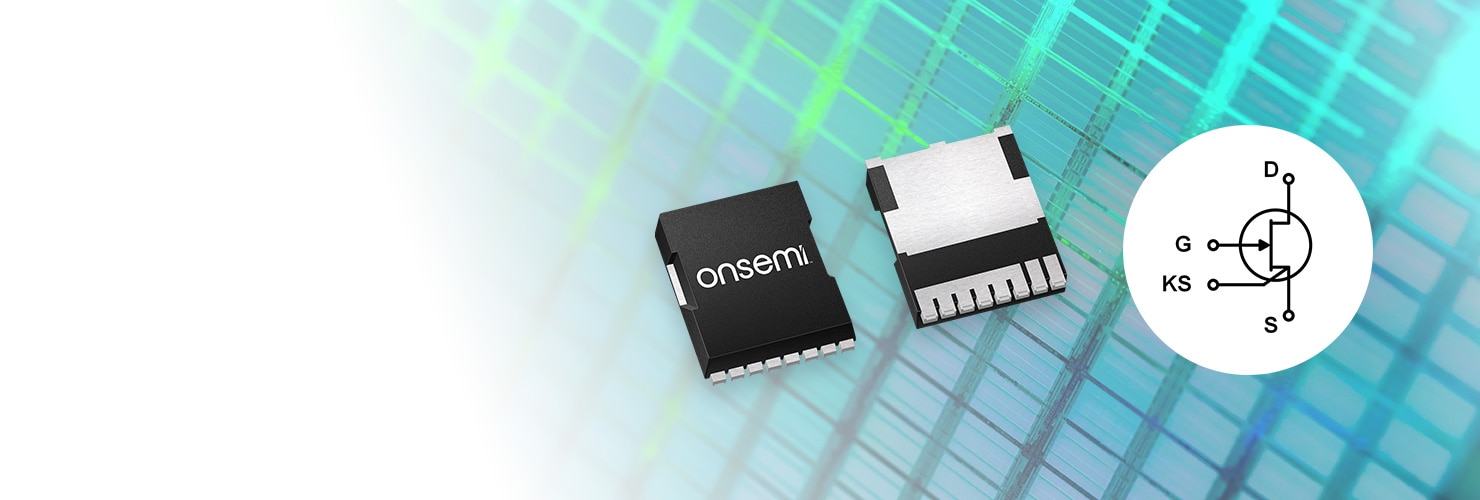

onsemi SiC JFETs are high-performance, normally-on transistors available with voltage ratings from 650 V to 1700 V. Leveraging the intrinsic advantages of SiC technology, they deliver ultra-low on-resistance (RDS(on)), low gate charge (Qg), and high-frequency switching capability, enabling reduced conduction and switching losses while maximizing power density. Their highly efficient architecture utilizes significantly less die area than alternative technologies, supporting compact, high-performance system designs.
Optimized for high-efficiency power conversion, SiC JFETs are well suited for Power Supply Units (PSUs), intermediate bus converters (IBC), and high-voltage DC-DC converters that support the growing power requirements of AI data center infrastructure. The devices also excel in hot-swap, eFuse, and linear-mode applications, enabling fast, reliable protection and control in Solid-State Circuit Breakers (SSCBs), EV Battery Disconnect Units (BDUs), and advanced power distribution systems.
Browse Silicon Carbide (SiC) JFETs
650V JFETs
750V JFETs
1200V JFETs
1700V JFETs
Featured Product
UJ4N075004L8S - Silicon Carbide (SiC) JFET
The UJ4N075004L8S is a 750 V, 4.3 mΩ high-performance Gen 4 normally-on SiC JFET transistor.
Product Page
Featured Product
UJ4N075005K4S - Silicon Carbide (SiC) JFET
The UJ4N075005K4S is a 750 V, 4.8 mΩ high-performance Gen 4 normally-on SiC JFET transistor.
Product Page
Application Examples

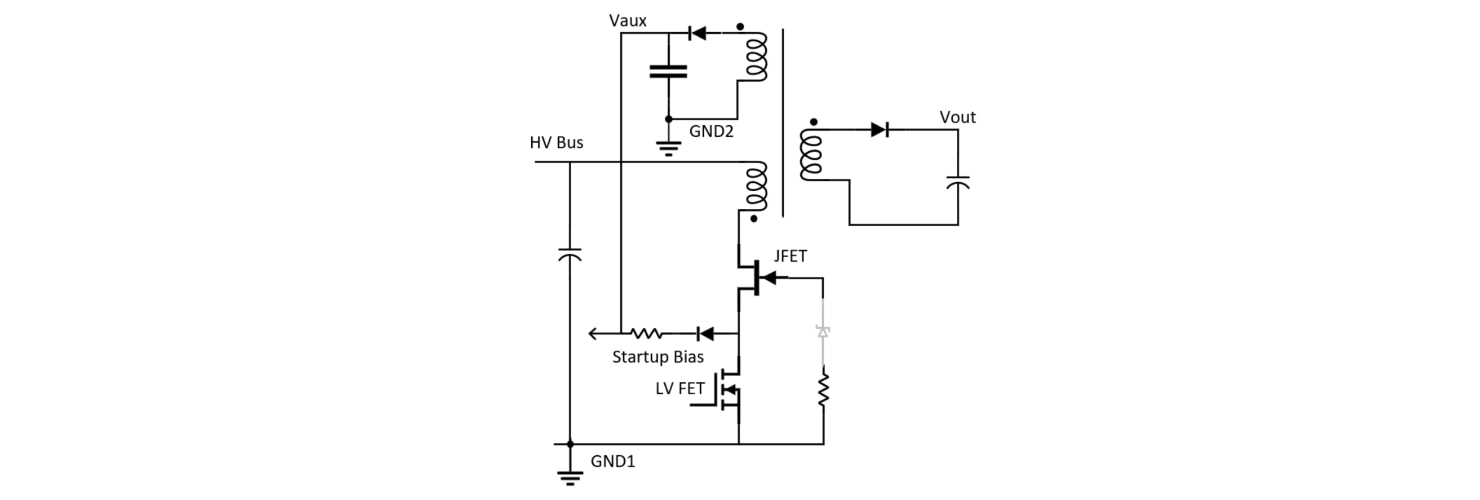

Flyback Converter Using Source-Switched SiC JFET
A discrete 1.7 kV SiC JFET together with a 30 V Si MOSFET in the cascode configuration is used as the main power switch in a flyback power supply.AI Data Center - Hot Swap Event
In a datacenter hot swap event, inserting a power supply with uncharged or partially charged input capacitors into a live rack can create a significant inrush current. This current surge may cause a voltage dip on the DC bus, leading to controller resets and system instability. SiC JFET Inrush current limiting prevents these large current spikes, enabling reliable hot-swappable operation.
Solid-State Circuit Breaker (SSCB)
SSCB is a device used to protect electrical circuits from damage caused by overcurrent, overload, or short circuits. It uses electronic components to detect and interrupt fault conditions, ensuring the safety and reliability of electrical systems.Featured Documents
JFET Primer - Construction and Operation of the SiC JFET
SiC JFET in Active Mode Applications
Design of a Flyback Converter Using Source‐Switched SiC JFET
Using SiC JFET SPICE Model in LTSPICE
EliteSiC JFET Based High Voltage Hot‐Swap Application
Advancing Power Circuits: SiC JFETs in Solid-State Circuit Breakers
Parametric Table
Parameters can be toggled;
,
Saved filters
Log in to your onsemi account to see your favorite Saved Filters.
Status
Compliance
Family
Drain Source Voltage
≥
V
≤
V
ID(peak) (A)
≥
A
≤
A
Typical RDS(on)
≥
mΩ
≤
mΩ
Package
Qg (nC)
≥
C
≤
C
Output capacitance Coss (pF)
≥
F
≤
F
TJ(max) (°C)
≥
°C
≤
°C
Bare Die
MSL Type
MSL Temp (°C)
ON Target
Search
Close Search
Product Groups:
9
┗
Orderable Parts:
9
Share
Sort by
Product Groups:
9
┗
Orderable Parts:
9
Product Group
Status
CAD Models
Compliance
Family
Drain Source Voltage
ID(peak) (A)
Typical RDS(on)
Package
Qg (nC)
Output capacitance Coss (pF)
TJ(max) (°C)
Bare Die
Package Type
MSL Type
MSL Temp (°C)
ON Target
Reference Price
Active
Pb
H
Gen3
1200
550
7.1
TO-247-4L
830
368
175
N
TO-247-4
NA
0
No
$47.5855
More Details
UF3N120007K4S
Active
Pb
H
Gen3
1200
550
7.1
TO-247-4L
830
368
175
N
TO-247-4
NA
0
No
$47.5855
More Details
Active
Pb
H
Gen3
1700
16
400
D2PAK-7L
30
22
175
N
D2PAK-7 / TO-263-7
1
255
No
$5.3999
More Details
UF3N170400B7S
Active
Pb
H
Gen3
1700
16
400
D2PAK-7L
30
22
175
N
D2PAK-7 / TO-263-7
1
255
No
$5.3999
More Details
Active
Pb
H
Gen3
650
250
25
TO-247-3L
240
290
175
N
TO-247
NA
0
No
$15.2796
More Details
UJ3N065025K3S
Active
Pb
H
Gen3
650
250
25
TO-247-3L
240
290
175
N
TO-247
NA
0
No
$15.2796
More Details
Active
Pb
H
Gen3
650
72
80
TO-247-3L
75
94
175
N
TO-247
NA
0
No
$5.7599
More Details
UJ3N065080K3S
Active
Pb
H
Gen3
650
72
80
TO-247-3L
75
94
175
N
TO-247
NA
0
No
$5.7599
More Details
Active
Pb
H
Gen3
1200
185
35
TO-247-3L
235
180
175
N
TO-247
NA
0
No
$23.7994
More Details
UJ3N120035K3S
Active
Pb
H
Gen3
1200
185
35
TO-247-3L
235
180
175
N
TO-247
NA
0
No
$23.7994
More Details
Active
Pb
H
Gen3
1200
90
66
TO-247-3L
114
100
175
N
TO-247
NA
0
No
$12.9063
More Details
UJ3N120065K3S
Active
Pb
H
Gen3
1200
90
66
TO-247-3L
114
100
175
N
TO-247
NA
0
No
$12.9063
More Details
Active
Pb
H
Gen3
1200
85
70
TO-247-3L
116
100
175
N
TO-247
NA
0
No
$11.893
More Details
UJ3N120070K3S
Active
Pb
H
Gen3
1200
85
70
TO-247-3L
116
100
175
N
TO-247
NA
0
No
$11.893
More Details
Active
Pb
H
Gen4
750
588
4.3
TOLL
400
364
175
N
H-PDSO-F8 9.90x10.38x2.30, 1.20P
1
260
No
$31.9312
More Details
UJ4N075004L8S
Active
Pb
H
Gen4
750
588
4.3
TOLL
400
364
175
N
H-PDSO-F8 9.90x10.38x2.30, 1.20P
1
260
No
$31.9312
More Details
Active
Pb
H
Gen4
750
588
4.8
TO-247-4L
400
364
175
N
TO-247-4
NA
0
No
$32.5672
More Details
UJ4N075005K4S
Active
Pb
H
Gen4
750
588
4.8
TO-247-4L
400
364
175
N
TO-247-4
NA
0
No
$32.5672
More Details
