Overview

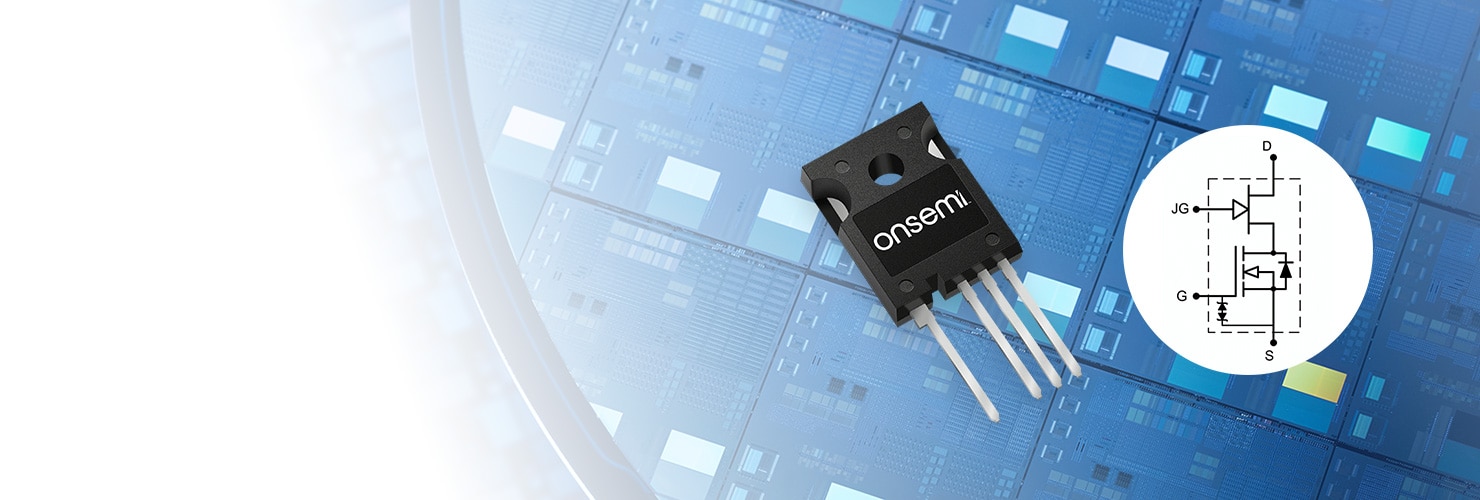

SiC Combo JFET represents a revolutionary advancement, combining our low RDS(on) SiC JFET with a Si MOSFET in a single, compact package. Specifically designed for low-frequency protection applications, such as Hot Swap on a Power Supply Units (PSUs), downstream high-voltage DC-DC converters for AI Data Center Racks, Solid-State Circuit Breakers (SSCBs), EV battery disconnects, and High Voltage efuse.
These Combo JFETs allow users to access the JFET gate for optimized design in dV/dt control, linear mode operation, and overdrive ability. The integration of the Si MOSFET ensures a normally-off solution, achieving a size reduction exceeding 30% compared to discrete implementations.
Browse Silicon Carbide (SiC) Combo JFETs
750V Combo JFETs
1200V Combo JFETs
Featured Product
UG4SC075005L8S - EliteSiC Combo JFET
This Combo JFET 5.0 mΩ, integrates both a 750V SiC JFET and a low voltage Si MOSFET into a single TOLL package. This innovative approach allows users to create circuitry that would enable a normally-off switch while leveraging the benefits of a normally-on SiC JFET.
Product Page
Featured Product
UG4SC075006K4S - EliteSiC Combo JFET
This Combo JFET 5.3 mΩ, integrates both a 750V SiC JFET and a low voltage Si MOSFET into a single TO-247-4L package. This innovative approach allows users to create circuitry that would enable a normally-off switch while leveraging the benefits of a normally-on SiC JFET.
Product Page
Featured Product
UG4SC075009K4S - EliteSiC Combo JFET
This Combo JFET 8.4 mΩ, integrates both a 750V SiC JFET and a low voltage Si MOSFET into a single TO-247-4L package. This innovative approach allows users to create circuitry that would enable a normally-off switch while leveraging the benefits of a normally-on SiC JFET.
Product Page Application Examples

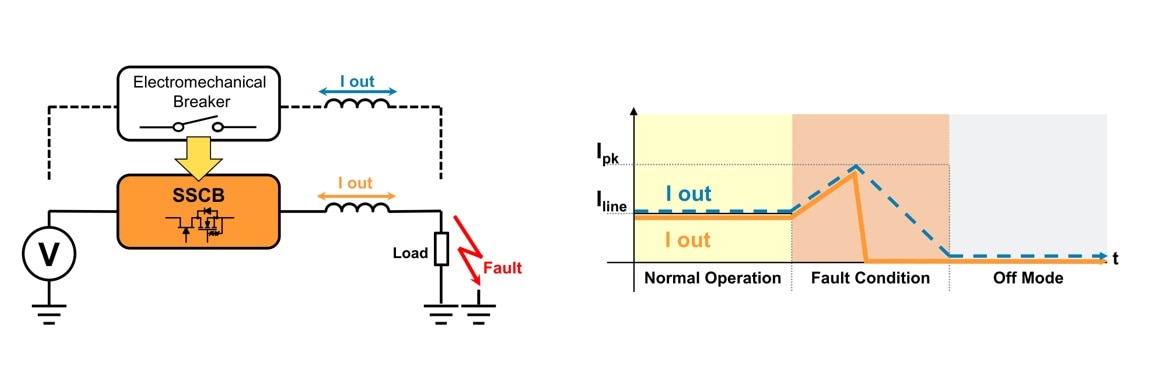

Solid-State Circuit Breaker (SSCB)
SSCBs are better than traditional mechanical breakers because they respond faster, are more reliable and are configurable. onsemi Combo JFETs are the preferred SSCB technology using a normally-off device to switch off the current in microseconds, minimizing damage and reducing fire risks.Hot Swap Operation in Data Centers

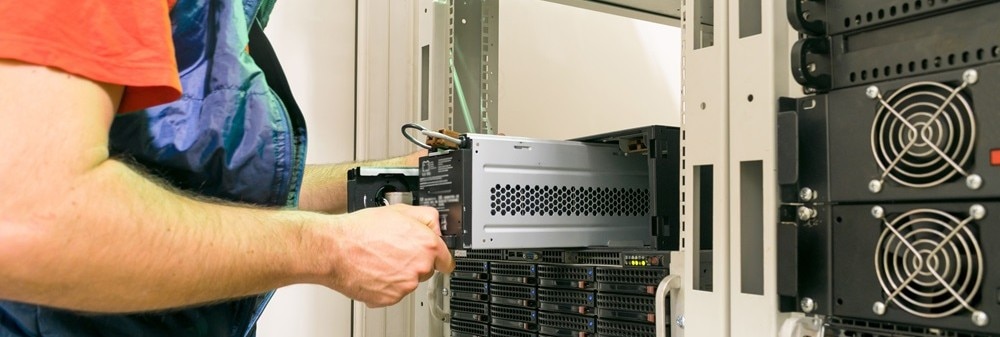

During datacenter hot swap operations, a power supply is inserted into a live rack while the system's DC bus is already energized. The newly inserted power supply may have discharged or partially charged capacitors. When connected, these capacitors draw a large inrush current as they rapidly charge to the bus voltage. 1200V Combo JFETs are a proven solution for hot-swap protection on 800VDC bus.
Featured Documents
SiC Combo JFET Technical Overview
EliteSiC JFET Based High Voltage Hot‐Swap Application
Advancing Power Circuits: SiC JFETs in Solid-State Circuit Breakers
AI Data Center - System Solution Guide
Solid-State Circuit Breaker - System Solution Guide
