Every switch needs a gate driver. Gate Driver Products are the interface between control signals (from a digital or analog controller) and power switches (IGBTs, MOSFETs, SiC MOSFETs, and GaN HEMTs). Their additional functions can include level shifting, isolation, fault sensing and signal conditioning. We offer a broad selection tailored for a variety of power switches, topologies and applications. ON Semiconductor’s diverse portfolio of gate drivers contains the right solution for a range of systems including Automotive, Industrial, Cloud and Telecom applications.
| Configuration | 20-36V | 100-300V | 600-700V | 900V | 1200V | |
|---|---|---|---|---|---|---|
| Single Channel | Low-side |  |
  |
|
||
| High-side |  |
|
|
|||
| Dual Channel | Low-side | |
|
|||
| High-side | |
|||||
| High-side and Low-side | |
|
|
|||
| Half-bridge | |
|
|
|
||
| 4 Channel | Full-bridge | |||||
| 6 Channel | Three-phase | |
|
|||
Gate Driver Categories
IGBT
Drivers
MOSFET
Drivers
SiC MOSFET
Drivers
GaN
Drivers
Opto Isolated
Drivers
Design Resources - Evaluation Boards
Gate Driver Plug and Play >
SECO−GDBB−EVB is a baseboard conceived for use as a plug and play environment for testing various types of gate drivers. The board enables to feed the drivers with the same control signal under same conditions and compare their capabilities. It is set up to accommodate up to six driver boards (daughter boards) designed to test gate drivers functions and features (all driver boards are pin compatible with baseboard).

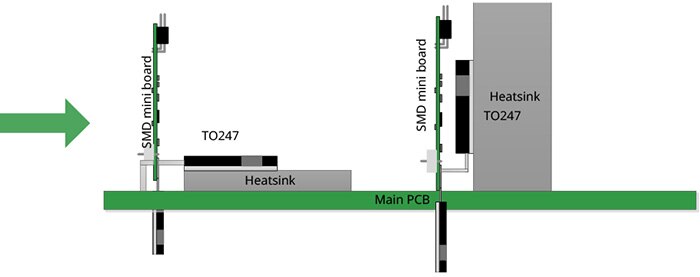

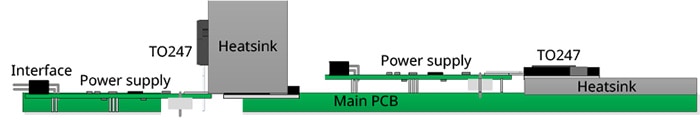

Main PCB Structure

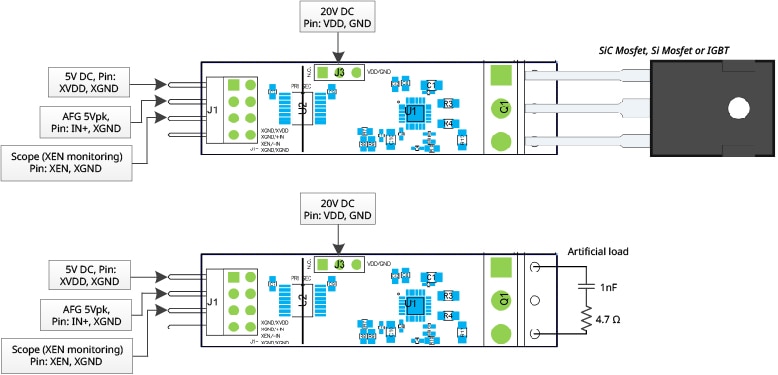

Daughter Mini Board Structure
Featured Daughter Cards
| Type | Device | Evaluation Board | Evaluation Boards User's Manual |
|---|---|---|---|
| Mother Board | SECO-GDBB-GEVB: Gate drivers plug-and-play ecosystem | Gate drivers plug-and-play ecosystem | Download |
| SiC MOSFET Driver | NCP51705: SiC MOSFET Driver, Low-Side, Single 6 A High-Speed | NCP51705 Mini SMD Evaluation Board | Download |
| MOSFET Driver | NCP51530: High Performance, 700 V- 3.5/3.0 A High and Low Side MOSFET Driver |
NCP51530 Half Bridge Evaluation Board | Download |
| IGBT Driver | NCD57000: Isolated high current and high efficiency IGBT gate driver with internal galvanic isolation |
NCD57000 Evaluation Board | Download |
See all available daughter cards

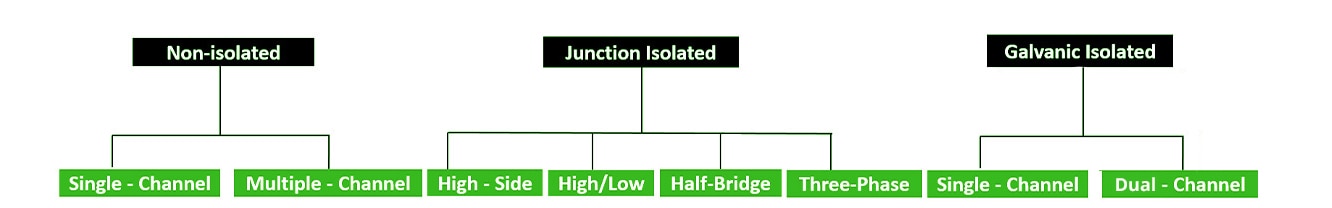

Gate Driver Category by Isolation
| Non-Isolated > | Junction Isolated > | Galvanic Isolated > |
|---|---|---|
|
|
|
Gate Driver Isolation Options

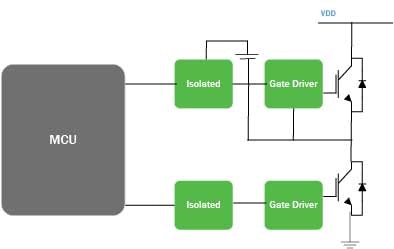

Single Isolated
Galvanic isolation is provided in the gate drive PWM logic signal from the controller using a part such an optocoupler or digital isolator. Then the isolated PWM signal is fed to the gate driver to turn on and off the switch.
Characteristics:
- Not commonly used
- Layout can be complex due to extra IC's
- Decoupling Caps extra cost
- GND noise Common Mode choke could be required
- APPS-Low to Med Power; Afterthought Isolation need it if long cables are used
Junction Isolation
A junction isolated gate driver does not provide true galvanic isolation. A semiconductor junction in the driver allows a floating well to rise and fall with the switch node, and therefore be able to control the high side gate.
Characteristics:
- Low cost
- Easy layout
- Need to select Boost Diode and Cap with care for speed/ratio noise
- Possible Cap needed for cross-coupling reduction due to NO galvanic Isolation
- APPS-DC-DC; PFC; Small-Med Motor drivers; Consumer Appliances; Med Power UPS<3KW

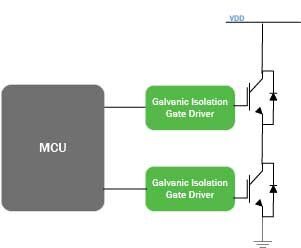

Galvanic Isolation
Galvanic isolation allows power or signal transfer between two electrical circuits without a shared current flow (circuits separately grounded). This can increase the reliability and safety of power systems and protects sensitive circuits from transients.
Inductive / Coreless transformer
- The magnetic field coupling between inductors carries the signal across the isolation boundary.
Capacitive Isolation
- The electric field between parallel plates (capacitor) carries the signal across the isolation boundary.
Optocoupler
- Photons from an LED are detected by a photdiode to transmit the signal across the isolate boundary.
Characteristics:
- IC is complex; all Intergrated
- Full protection features
- Higher cost/Highest safety
- Ease of Layout, no extra components
- APPS-High Power AC/BLDC Motors; Industrial SMPS; Solar Inverters; High Power UPS>3KW
