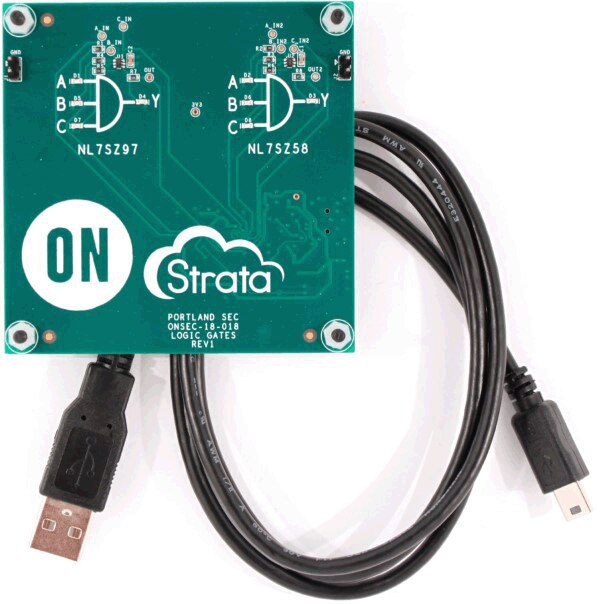

STR-LOGIC-GATES-EVK: Strata Enabled Multi-function Logic Gate

Strata enables seamless evaluation of hardware devices such as this configurable multifunction logic gate. The evaluation hardware can be controlled with simple GUI input switches while monitoring the output of two individual logic gates. Design collateral such as schematics, PCB layout, test reports, etc. are supplied in the same Strata interface to ease evaluation. This design serves as a vehicle for ON Semiconductor customers to understand and start taking advantage of the new Strata ecosystem. Other designs will follow such as switching and linear power supplies, offline converters, and a power ecosystem to fully evaluate most power converters. See the Strata webpage at for more details!
Features and Applications


  • Strata enabled
  • Easy visual demonstration of Strata ecosystem
  • Variety of logic gate functions
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
Strata Enabled Multi-function Logic Gate NL7SZ58DFT2G NL7SZ97DFT2G
Avnet (2020-08-19) : 2
Technical Documents
Type Document Title Document ID/Size Rev
Software Strata Setup Software for Microsoft Windows Strata setup Windows - 109903 KB Locked
Video Strata: Logic Gate Interfacing WVD17276/D
Eval Board: Gerber STR-LOGIC-GATES-EVK Gerber Layout Files (Zip Format) STR-LOGIC-GATES-EVK_GERBER - 2207 KB  0
Eval Board: BOM STR-LOGIC-GATES-EVK Bill of Materials (ROHS Compliant) STR-LOGIC-GATES-EVK_BOM_ROHS - 202 KB  0
Eval Board: Manual STR-LOGIC-GATES-EVK User Guide STR-LOGIC-GATES-EVK_user_guide - 551 KB  0
