STR-ADAS-PREREGULATOR-GEVK: Strata Enabled Flexible ADAS Power Solution

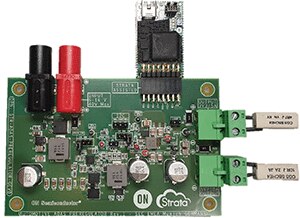

The STR-ADAS-PREREGULATOR-GEVK is an optimized power management solution for automotive systems such as Infotainment or ADAS with an I2C programmable output voltage between 0.6V-3.3V and a fixed 5V output. The system boasts a high efficiency up to 98% and its adaptability allows for implementation in several high performance applications. The key featured components are the NCV6357 Adapative-On-Time and programmable buck converter, the NCV881930 low quiescent buck synchronous controller and the 40V, high thermal performance and compact NVMFS5C460NL MOSFETs. Thanks to the Strata visual interface, users can not only monitor telemetry data, such as, voltage, current, efficiency or temperature; but also adjust the output voltage. Strata ready-to-use laboratory environment enables a fast system and component evaluation. The development kit include the STR-ADAS-PREREGULATOR-GEVB, the Strata plug-in board, USB cable and load resistors. See the Strata webpage at www.onsemi.com/strata for more details!
Features and Applications

Features

  • Vin 6.0 - 16.0 V, 40.0 V peak
  • Vo1 5.0 V @ 10.0 A peak
  • Vo2 0.6V - 3.3 V @ 5.0 A peak I2C programmable in 12.5mV steps
  • Telemetry monitoring: Temperature, voltage, current, INT
  • Adaptive-On-Time (AOT) and spread spectrum hardware functionalities
  • NCV881930: Low Quiescent Current 410 kHz A Synchronous Buck Controller
  • NCV6357: Synchronous Buck Converter, Processor Supply, I2C Programming, 5.0 A
  • NCT375MNR2G: Digital temperature sensing SMBus
  • Low Voltage rail switching frequency up to 2.4Mhz
  • PFM and PPWM with automatic transition
  • AEC-Q101 qualified
  • STR-ADAS-PREREGULATOR-GEVB,Strata plug-in board, USB cable and load resistors included in the kit.

Applications

  • Automotive DC-DC sub system
  • Advanced driver-assistance systems (ADAS)
  • Automotive POL
  • Instrumentation
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
STR-ADAS-PREREGULATOR-GEVK Active
Pb-free
Strata Enabled Flexible ADAS Power Solution 2V7002WT1G CAT24C512C8UTR
NCS214RSQT2G NCT375MNR2G
NCV6357MTWDTXG NCV881930MW00R2G
NRVBAF360T3G NVATS5A108PLZT4G
NVMFS5C460NLAFT1G SZ1SMB5937BT3G
SZBZX84C15LT1G
Technical Documents
Type Document Title Document ID/Size Rev
Software Strata Setup Software for Microsoft Windows Strata setup Windows - 109903 KB Locked  2.9.0.2
Video Automotive ADAS Preregulator | Strata WVD17350/D
Eval Board: Schematic STR-ADAS-PREREGULATOR-GEVK Schematic STR-ADAS-PREREGULATOR-GEVK_SCHEMATIC - 139 KB  0
Eval Board: Gerber STR-ADAS-PREREGULATOR-GEVK Gerber Layout Files (Zip Format) STR-ADAS-PREREGULATOR-GEVK_GERBER - 593 KB  0
Design Notes STR-ADAS-PREREGULATOR-GEVK Block Diagram STR-ADAS-PREREGULATOR-GEVK_BLOCK_DIAGRAM - 70 KB  0
Design Notes STR-ADAS-PREREGULATOR-GEVK Test Report STR-ADAS-PREREGULATOR-GEVK_TEST_REPORT - 1989 KB  0
