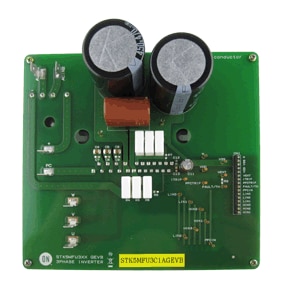

STK5MFU3C1AGEVB: 2-in-1 PFC and Inverter Intelligent Power Module Evaluation Board

The STK5MFU3C1AGEVB is a fully-integrated PFC and inverter power stage Evaluation Board consisting of a high-voltage driver, six motor drive IGBTs, one PFC IGBT, one PFC rectifier and a thermistor, suitable for driving permanent magnet synchronous (PMSM) motors, brushless-DC (BLDC) motors and AC asynchronous motors.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
2-in-1 PFC and Inverter Intelligent Power Module Evaluation Board STK5MFU3C1A-E
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual STK5MFU3C1A-E Evaluation Board User's Manual EVBUM2489/D - 469 KB  0
Eval Board: BOM STK5MFU3C1AGEVB Bill of Materials (ROHS Compliant) STK5MFU3C1AGEVB_BOM_ROHS - 167 KB  0
Eval Board: Gerber STK5MFU3C1AGEVB Gerber Layout Files (Zip Format) - 37 KB  0
Eval Board: Schematic STK5MFU3C1AGEVB Schematic STK5MFU3C1AGEVB_SCHEMATIC - 182 KB  0
Eval Board: Test Procedure STK5MFU3C1AGEVB Test Procedure STK5MFU3C1AGEVB_TEST_PROCEDURE - 290 KB  0
