NVG800A75L4DSC-EVK: VE-Trac Dual EZ Kit

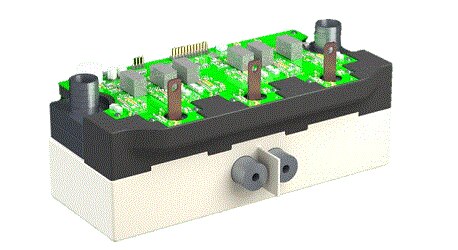

The VE-TracTM Dual Evaluation Kit consists of three VE-Trac Dual power modules (NVG800A75L4DSB) mounted on dual side cooling heatsink, with a 6-ch Gate driver board, DC Link capacitor and external hall-effect current sense feedback for motor control. The kit does not include a PWM controller. The evaluation kit allows the customers to evaluate VE-Trac Dual power module performance in the early stage of inverter development. The kit can be used as a double pulse tester to measure key switching parameters or used as a 3-ph inverter for motor control.
Features and Applications


  • Inverter evaluation Hardware kit for EV/HEV Traction Inverter applications (up to 150kW)
  • VE-Trac Dual NVG800A75L4DSB with 800A, 750V Field stop 4 IGBT/Diode chipset.
  • Implementation of Faster and simpler OCP enabled by On-Chip Current Sensing feature in the power modules.
  • Implementation of faster and closer to true Tvj OTP with integrated to On-Chip Temperature Sensing feature in the power modules.
  • Custom designed dual side cooler offers low pressure drop with excellent thermal performance.
  • Custom Film DC Link capacitor rated up to 500VDC, 500 uF.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NVG800A75L4DSC-EVK Active
VE-Trac Dual EZ Kit NVG800A75L4DSC
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual VE-Trac™ Dual EZ Kit Quickstart Guide EVBUM2704/D - 1689 KB  1
Video VE-Trac Innovative Traction Inverter Solution WVD17402/D
