NIS5232-35GEVB:  NIS5232-35 Electronic Fuse Evaluation Board

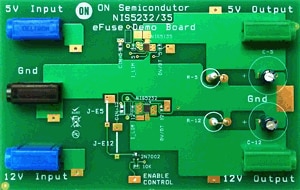

The NIS5232 and NIS5235 electronic fuses are monolithic, integrated circuits that offer superior protection for overcurrent and overvoltage. The NIS5232 is designed for 12 volt systems while the NIS5235 is designed for 5 volt systems. These two chips can be easily interfaced for systems that include both a 5 and a 12 volt bus. By tying the enable pins together both units will shutdown if either unit encounters a fault condition. This evaluation board can be used to examine the behavior of either unit individually or both units together. A set of jumpers is provided to allow the enable pins to be connected or disconnected from each other.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NIS5232-35GEVB Active
Pb-free
NIS5232-35 Electronic Fuse Evaluation Board NIS5135MN1TXG NIS5232MN1TXG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: BOM NIS5232-35GEVB Bill of Materials ROHS Compliant NIS5232-35GEVB_BOM_ROHS.PDF - 86 KB  0
Eval Board: Gerber NIS5232-35GEVB Gerber Layout Files (Zip format) NIS5232-35GEVB_GERBER.ZIP - 123 KB  0
Eval Board: Schematic NIS5232-35GEVB Schematic NIS5232-35GEVB_SCHEMATIC.PDF - 179 KB  0
Eval Board: Test Procedure NIS5232-35GEVB Test Procedure NIS5232-35GEVB_TEST_PROCEDURE - 29 KB  0
Video Mother Board Power Management (eFuse) Solutions with the NIS5232-35GEVB Evaluation Board TND6123/D
