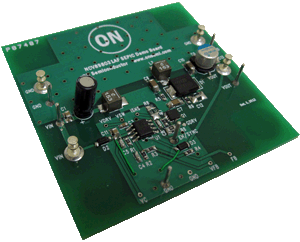

NCV898031SEPGEVB:  SEPIC Boost Evaluation Board

The NCV898031 is an adjustable output non-synchronous 2 MHz SEPIC/boost controller which drives an external N-channel MOSFET. The device uses peak current mode control with internal slope compensation. The IC incorporates an internal regulator that supplies charge to the gate driver. Protection features include internally-set soft-start, undervoltage lockout, cycle-by-cycle current limiting and thermal shutdown.

Additional features include low quiescent current sleep mode and microprocessor compatible enable pin.

Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCV898031SEPGEVB Active
Pb-free
SEPIC Boost Evaluation Board NCV898031D1R2G
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual NCV898031SEPGEVB Evaluation Board User's Manual EVBUM2167/D - 608 KB  2
Eval Board: BOM NCV898031SEPGEVB Bill of Materials ROHS Compliant NCV898031SEPGEVB_BOM_ROHS.PDF - 45.0 KB  2
Eval Board: Gerber NCV898031SEPGEVB Gerber Layout Files (Zip Format) NCV898031SEPGEVB_GERBER.ZIP - 67.0 KB  0
Eval Board: Schematic NCV898031SEPGEVB Schematic NCV898031SEPGEVB_SCHEMATIC.PDF - 190.0 KB  1
Eval Board: Test Procedure NCV898031SEPGEVB Test Procedure NCV898031SEPGEVB_TEST_PROCEDURE.PDF - 15 KB  3
Video SEPIC Boost Evaluation Board - NCV898031SEPGEVB Test Procedure WVD17014/D
