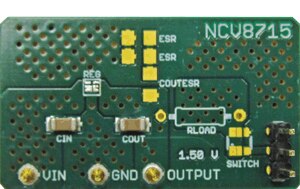

NCV8715MXTBGEVB: XDFN6 EVALUATION BOARD


The demoboard supports the LDO regulator NCV8715 in XDFN6 package with fix output voltages: 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.0 V, 3.3 V and 5.0V. The ultra low quiescent current below 4.7 uA alows operation without Enable pin for low consumption state. For more information please see the datasheet.
Features and Applications

Features

  • Operating Input Voltage Range: 2.5 V to 24 V
  • Fixed Voltage Options Available: 1.2 V to 5.0 V
  • Ultra Low Quiescent Current: Max. 4.7 uA Over Full Load and Temperature
  • ±2% Accuracy over Full Load, Line and Temperature Variations
  • PSRR: 52 dB at 100 kHz
  • Thermal Shutdown Protection
  • Current Limitation
  • Noise: 190 uVRMS from 200 Hz to 100 kHz
  • These are Pb−Free Devices

Applications

  • Portable Equipment
  • Communication Systems
  • Other Battery Powered Applications
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCV8715MXTBGEVB Active
Pb-free
XDFN6 EVALUATION BOARD NCV8715MX12TBG NCV8715MX15TBG
NCV8715MX18TBG NCV8715MX25TBG
NCV8715MX30TBG NCV8715MX33TBG
NCV8715MX50TBG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: BOM NCV8715MXTBGEVB Bill of Materials ROHS Compliant NCV8715MXTBGEVB_BOM_ROHS - 40 KB  1
Eval Board: Gerber NCV8715MXTBGEVB Gerber Layout Files (Zip Format) NCV8715MXTBGEVB_GERBER - 172 KB  1
Eval Board: Schematic NCV8715MXTBGEVB Schematic NCV8715MXTBGEVB_SCHEMATIC - 41 KB  1
Eval Board: Test Procedure NCV8715MXTBGEVB Test Procedure NCV8715MXTBGEVB_TEST_PROCEDURE - 116 KB  1
