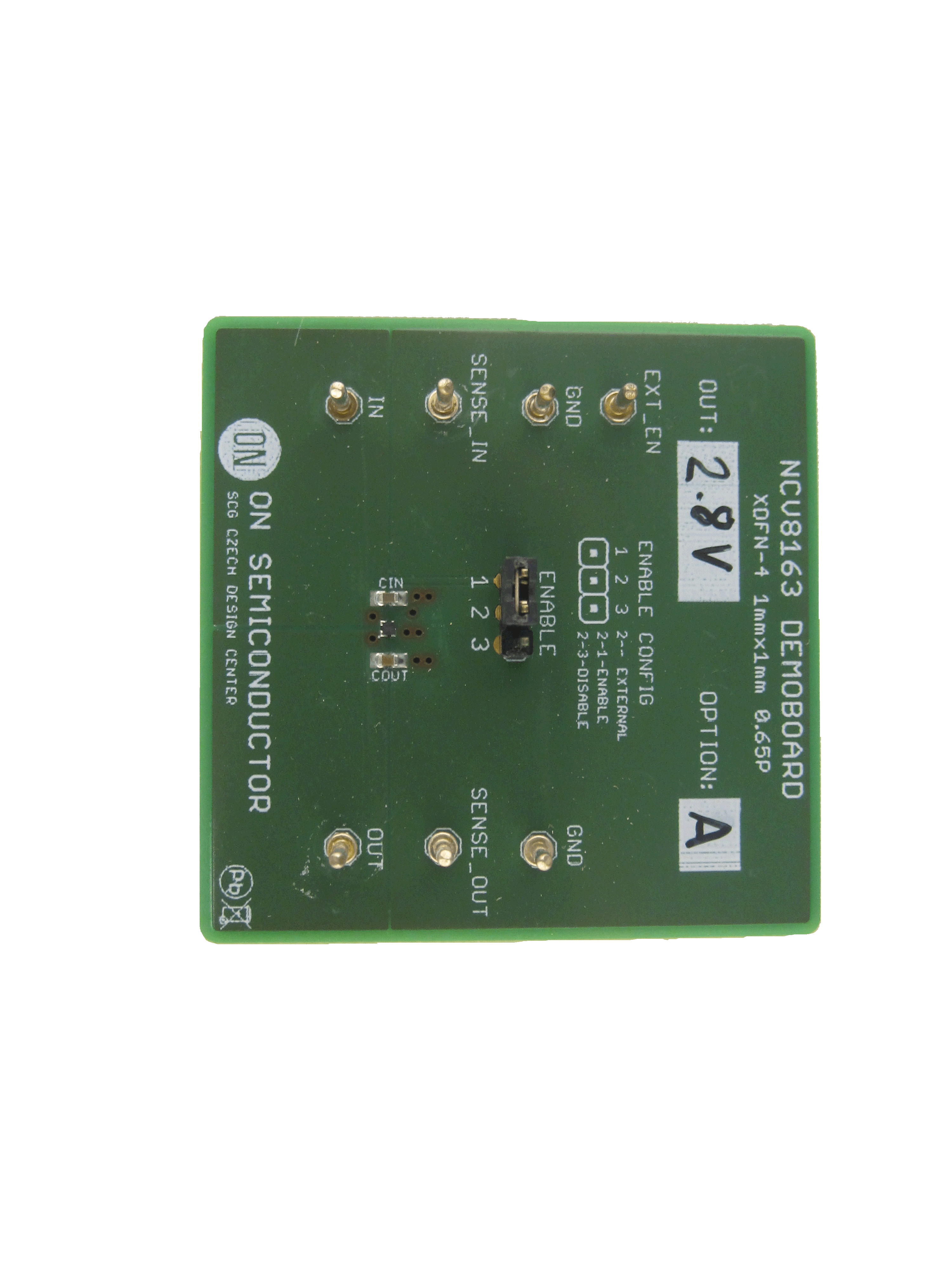

NCV8163MXTBGEVB: NCV8163 XDFN4 EVAL BOARD

Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCV8163MXTBGEVB Active
Pb-free
NCV8163 XDFN4 EVAL BOARD NCV8163AMX120TBG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: BOM NCV8163MXTBGEVB Bill Of Material (ROHS Compliant) NCV8163MXTBGEVB_BOM_ROHS - 114 KB  0
Eval Board: Gerber NCV8163MXTBGEVB Gerbers (ZIP Format) NCV8163MXTBGEVB_gerber - 30 KB  0
Eval Board: Schematic NCV8163MXTBGEVB Schematic NCV8163MXTBGEVB_SCHEMATIC - 85 KB  0
Eval Board: Test Procedure NCV8163MXTBGEVB Test Procedure NCV8163MXTBGEVB_TEST_PROCEDURE - 434 KB  0
