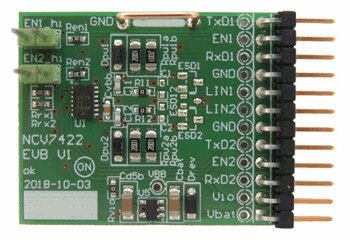

NCV7422V1GEVB: NCV7422 Dual LIN Transceiver Evaluation Board

The NCV7422V1GEVB is designed to quickly evaluate the NCV7422 dual channel LIN transceiver. The board is intended to provide quick and convenient means for evaluation of LIN transceiver, including master node termination on-board 5 V LDO. The design incorporates the lowest bill of material and small board size.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCV7422V1GEVB Active
Pb-free
NCV7422 Dual LIN Transceiver Evaluation Board NCV4294CSN50T1G NCV7422MW0R2G
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual NCV7422 Dual LIN Transceiver Evaluation Board User's Manual EVBUM2601/D - 1109 KB  0
Eval Board: BOM NCV7422V1GEVB_BOM_ROHS.rev0 NCV7422V1GEVB_BOM_ROHS - 198 KB  0
Eval Board: Gerber NCV7422V1GEVB_GERBER.rev0 NCV7422V1GEVB_GERBER - 95 KB  0
Eval Board: Schematic NCV7422V1GEVB_SCHEMATIC.rev0 NCV7422V1GEVB_SCHEMATIC - 140 KB  0
Eval Board: Test Procedure NCV7422V1GEVB_TEST_PROCEDURE.rev0 NCV7422V1GEVB_TEST_PROCEDURE - 330 KB  0
