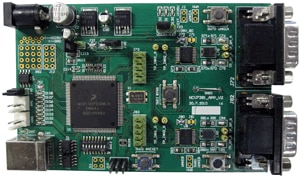

NCV7381AGEVK: FlexRay ® Transceiver, Clamp 30 Evaluation Kit

The NCV7381AGEVK is designed to quickly evaluate the NCV7381, a single channel FlexRay ® transceiver compliant with the FlexRay Electrical Physical Layer Specification Rev. 3.0.1 and capable of communicating at speeds of up to 10 Mbit/s. The device provides differential transmit and receive capability between a wired FlexRay communication medium on one side and a protocol controller and a host on the other side. The NCV7381 mode control functionality is optimized for nodes permanently connected to car battery. Further, the NCV7381 offers excellent EMC and ESD performance. For more information please see the datasheet.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCV7381AGEVK Active
Pb-free
FlexRay ® Transceiver, Clamp 30 Evaluation Kit NCV7381ADP0R2G
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual NCV7381 FlexRay Transceiver Evaluation Board User's Manual EVBUM2571/D - 5931 KB  0
Eval Board: Gerber NCV7381AGEVK Gerbers (ZIP Format) NCV7381AGEVK_GERBERS - 298 KB  0
Eval Board: BOM NCV7381AGEVK Bill Of Materials (ROHS Compliant) NCV7381AGEVK_BOM_ROHS - 73 KB  0
Eval Board: Schematic NCV7381AGEVK Schematic NCV7381AGEVK_SCHEMATIC - 278 KB  0
Eval Board: Test Procedure NCV7381AGEVK Test Procedure NCV7381AGEVK_TEST_PROCEDURE - 501 KB  0
