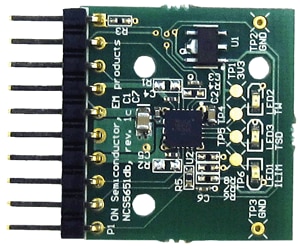

NCS5651MNSGEVB: Evaluation board for the NCS5651 low-distortion, high-frequency power line driver.

The NCS5651MNSEVB Evaluation Board is designed to test the NCS5651, which is a high efficiency, Class A/B, low distortion power line driver optimized to accept a signal from a Power Line Carrier modem.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCS5651MNSGEVB Active
Pb-free
Evaluation board for the NCS5651 low-distortion, high-frequency power line driver. NCS5651MNTXG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual NCS5651MNSG Evaluation Board User's Manual EVBUM2288/D - 739 KB  1
Eval Board: Test Procedure NCS5651MNSGEVB TEST PROCEDURE NCS5651MNSGEVB_TEST_PROCEDURE - 132 KB  0
Eval Board: Schematic NCS5651MNSGEVB SCHEMATIC NCS5651MNSGEVB_SCHEMATIC - 78 KB  0
Eval Board: Gerber NCS5651MNSGEVB GERBER Layout Files (Zip Format) NCS5651MNSGEVB_GERBER.zip - 16 KB  0
Eval Board: BOM NCS5651MNSGEVB Bill Of Materials ROHS Compliant NCS5651MNSGEVB_BOM_ROHS.pdf - 22 KB  1
Video PLC Line Driver, 2 Amp Evaluation Board - NCS5651MNSGEVB Test Procedure WVD17015/D
