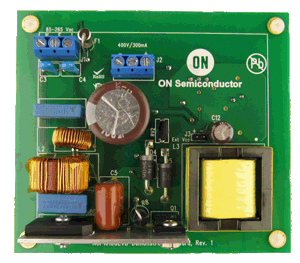

NCP1616GEVB: High Voltage PFC Controller

The NCP1616GEVB Evaluation Board is a high voltage PFC controller designed to drive PFC boost stages based on an innovative Current Controlled Frequency foldback (CCFF) method. In this mode, the circuit operates in critical conduction mode(CrM) when the inductor current exceeds a programmable value. When the current is below this preset level, the NCP1616 linearly decays the frequency down to minimum of about 26kHz at the sinusoidal zero-crossing. CCFF maximizes the efficiency at both nominal and light load. In particular, the standby losses are reduced to a minimum. Innovative circuitry allows near-unity power factor even when the switching frequency is reduced.

The integrated high voltage start-up circuit eliminates the need for external start-up components and consumes negligible power during normal operation. Housed in a SOIC-9 package, the NCP1616GEVB Evaluation Board incorporates the features necessary for robust and compact PFC stages, with few external components.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCP1616GEVB Active
Pb-free
High Voltage PFC Controller NCP1616A1DR2G
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Gerber NCP1616GEVB Gerber Layout Files (Zip Format) NCP1616GEVB_GERBER.zip - 61 KB  0
Eval Board: BOM NCP1616GEVB Bill of Materials (ROHS Compliant) NCP1616GEVB_BOM_ROHS - 77 KB  1
Video High Voltage PFC Controller Evaluation Board – NCP1616GEVB WVD17669/D
Eval Board: Schematic NCP1616GEVB_SCHEMATIC.REV0.PDF NCP1616GEVB_SCHEMATIC.rev0 - 83 KB  0
