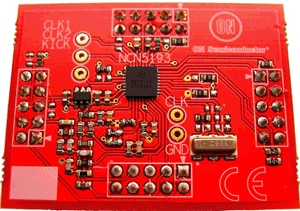

NCN5193GEVB: HART CMOS Modem Evaluation Board

The NCN5193GEVB evaluation board is designed to quickly test the NCN5193, a single-chip, CMOS modem for use in highway addressable remote transducer (HART) field instruments and masters.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCN5193GEVB Active
HART CMOS Modem Evaluation Board NCN5193MNTWG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual NCN5193NG Evaluation Board User's Manual EVBUM2237/D - 548 KB  1
Eval Board: BOM NCN5193GEVB Bill of Materials ROHS Compliant NCN5193GEVB_BOM_ROHS.pdf - 42 KB  0
Eval Board: Gerber NCN5193GEVB Gerber Layout Files (Zip Format) NCN5193GEVB_GERBER.zip - 53 KB  0
Eval Board: Schematic NCN5193GEVB Schematic NCN5193GEVB_SCHEMATIC.pdf - 216 KB  0
Eval Board: Test Procedure NCN5193GEVB Test Procedure NCN5193GEVB_TEST_PROCEDURE.pdf - 187 KB  0
