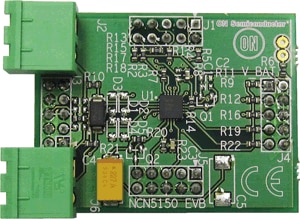

NCN5150QFNGEVB:  Wired M-BUS Slave Transceiver, 6 unit loads, Evaluation Board


The NCN5150 is a single-chip integrated slave transceiver for use in two-wire Meter Bus (M-BUS) slave devices and repeaters. The transceiver provides all of the functions needed to satisfy the European Standards EN 13757-2 and EN 1434-3 describing the physical layer requirements for M-BUS. This particular version (NQFP version) includes a programmable power level of up to 6 unit loads, which are available for use in external circuits through a 3.3 V LDO regulator. The NCN5150 can provide communication up to the maximum M-BUS communication speed of 38,400 baud (half-duplex).
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCN5150QFNGEVB Active
Pb-free
Wired M-BUS Slave Transceiver, 6 unit loads, Evaluation Board NCN5150MNTWG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual NCN5150 Evaluation Boards User's Manual EVBUM2178/D - 647.0 KB  0
Eval Board: BOM NCN5150QFNGEVB Bill of Materials ROHS Compliant NCN5150QFNGEVB_BOM_ROHS.PDF - 36.0 KB  0
Eval Board: Gerber NCN5150QFNGEVB Gerber Layout Files (Zip Format) NCN5150QFNGEVB_GERBER.ZIP - 50.0 KB  0
Eval Board: Schematic NCN5150QFNGEVB Schematic NCN5150QFNGEVB_SCHEMATIC.PDF - 163.0 KB  0
Eval Board: Test Procedure NCN5150QFNGEVB Test Procedure NCN5150QFNGEVB_TEST_PROCEDURE.PDF - 223.0 KB  0
Video Wired M-BUS Slave Transceiver, 6 unit loads, Evaluation Board - NCN5150QFNGEVB WVD17674/D
