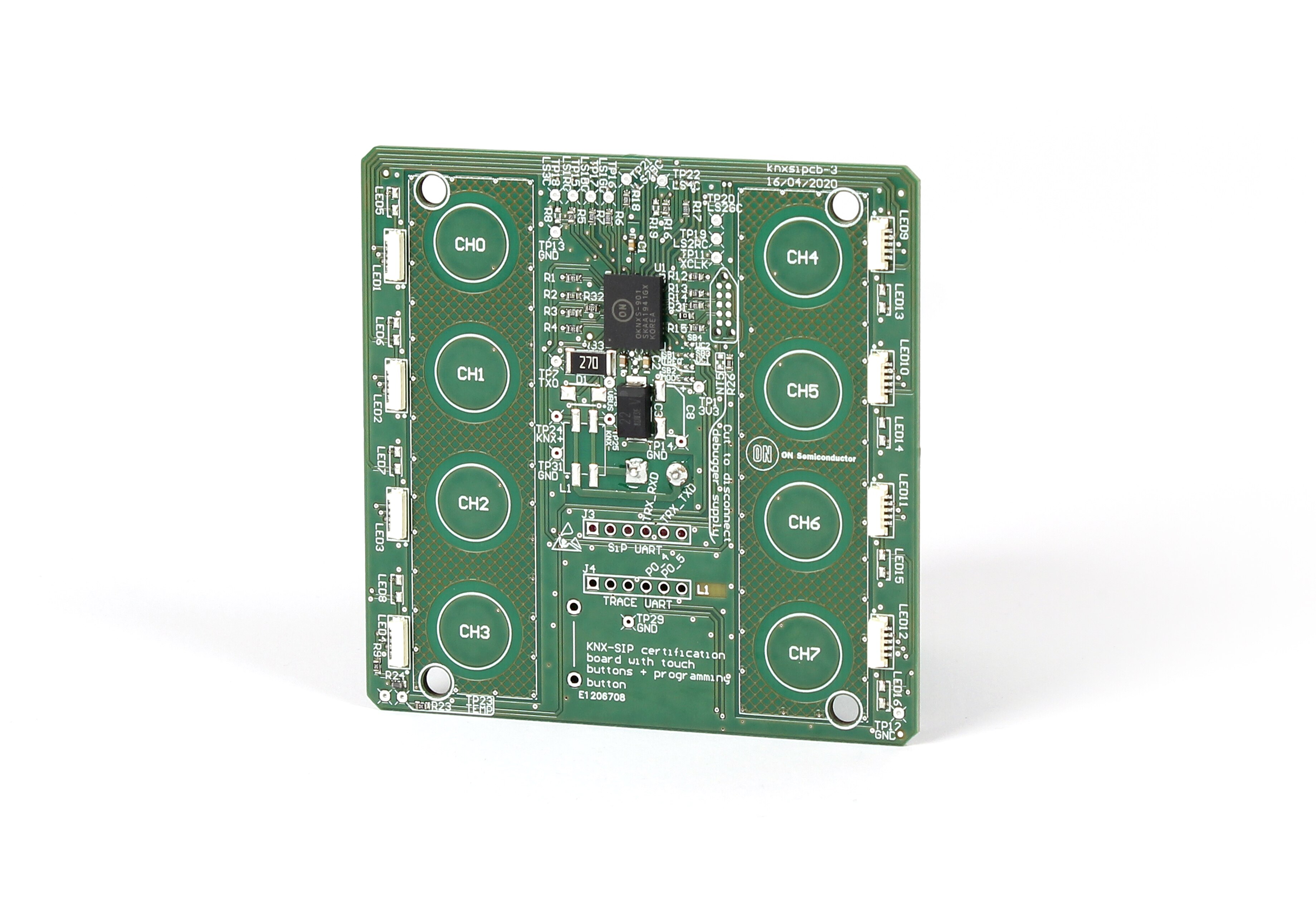

NCN5140TSCGEVB: NCN5140S KNX System-in-Package 8Touch Switch Certified Eval Board

The NCN5140TSCGEVB is a KNX-certified touch switch evaluation board. Built around the NCN5140S KNX System-in-Package, it provides an easy entry point into the KNX network. The maximum pre-certified configuration consists of 8 touch switches and 8 RGB LEDs. Simple registration of a derived product is sufficient to obtain KNX certification of a customized KNX touch switch.
Features and Applications

Features

  • Fully-certified KNX switch application: - Certified Physical Layer - Certified KNX Stack
  • Pre-certified Hardware & Software: - Up to 8 Capacitive Touch Switch Buttons with RGB LEDs
  • Very High Degree of Integration
  • Low BOM cost, cost reduction
  • Fast time to market, reduced R&D effort
  • Improved slimline aesthetics

Applications

  • Capacitive Touch Switches, up to 8 touch buttons
  • RGB LEDs illuminating the touch buttons
  • Building Automation & Smart Home
  • Smart Lighting Switches
  • Shutters and Blinds Control
  • Ventilation Control
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCN5140TSCGEVB Active
Pb-free
NCN5140S KNX System-in-Package 8Touch Switch Certified Eval Board NCN5140SG NCN5140STXG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Gerber NCN5140TSCGEVB Gerber Layout Files (Zip Format) NCN5140TSCGEVB_GERBER.zip - 3050 KB  1
Eval Board: Manual NCN5140BSCGEVB User Manual EVBUM2802-D - 1555 KB  0
Eval Board: Schematic NCN5140TSCGEVB Schematic NCN5140TSCGEVB_SCHEMATIC - 521 KB  0
