NCN26010XMNEVB: NCN26010XMNTXG Evaluation Board

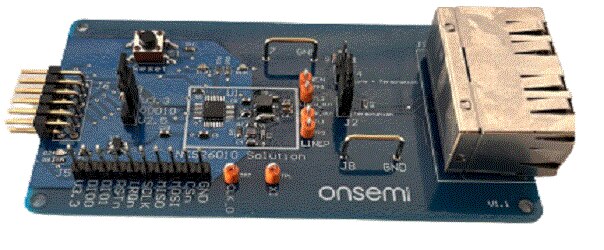

The NCN26010XMNEVB is a PCB designed to allow customers access to onsemi's NCN26010
SPI enabled 10BASE-T1S MACPHY. Its main purpose is to demonstrate the MACPHYs basic
functionality and doubles as a lab tool to allow customers to develop their own embedded
software drivers for the NCN26010 device.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCN26010XMNEVB Active
NCN26010XMNTXG Evaluation Board NCN26010XFBR2G NCN26010XMNTXG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual NCN26010XMNEVB 10BASE-T1S MACPHY Evaluation Board User's Manual EVBUM2832/D - 818 KB  1
Eval Board: BOM NCN26010XMNEVB Bill of Materials (ROHS Compliant) NCN26010XMNEVB_BOM_ROHS - 287 KB  0
Eval Board: Gerber NCN26010XMNEVB Gerber Layout Files (Zip Format) NCN26010XMNEVB_GERBER - 64 KB  0
Eval Board: Schematic NCN26010XMNEVB Schematic NCN26010XMNEVB_SCHEMATIC - 241 KB  0
