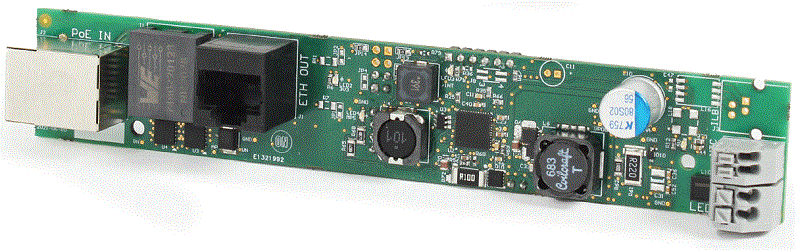

NCL31010REFGEVB: Intelligent PoE LED Driver reference design

PoE Connected Lighting Luminaire Controller Reference Design, Ethernet Alliance PoE Certified and YellowDot™ ready.
NCL31010REFGEVB is part of the NCL31010 Evaluation Kit NCL31010GEVK.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCL31010REFGEVB Active
Intelligent PoE LED Driver reference design BAS21AHT1G BC846BPDW1T1G
FDC8602 FDMA037N08LC
FDMC8622 FDMQ8205A
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: BOM NCL31010REFGEVB Bill of Materials (ROHS Compliant) NCL31010REFGEVB_BOM_ROHS - 203 KB  0
Eval Board: Gerber NCL31010REFGEVB Gerber Layout Files (Zip Format) NCL31010REFGEVB_GERBER - 1440 KB  0
Eval Board: Schematic NCL31010REFGEVB Schematic NCL31010REFGEVB_SCHEMATIC - 1008 KB  0
