Multi Sensor Board (ALS, IMU, ENV)

Overview

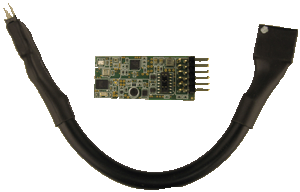

The Multi-Sensor Board enables prototyping of devices for asset tracking, wearables, smart home and other smart sensing devices. The board includes an Ambient Light Sensor (ALS), Inertial (IMU) and Environmental Sensors (ENV).

With large Signal-to-Noise ratio and wide dynamic range, the NOA1306 on the Multi-sensor board, is an ideal choice for mobile applications that need ambient light sensing. The inertial sensing on the board is provided by Bosch’s BNO055, a 9-axis absolute orientation sensor that includes an accelerometer, gyroscope and a magnetometer. BME680, from Bosch provides gas, pressure, humidity and temperature sensing capabilities on the Multi-sensor board.

Bosch BNO055
Bosch BME680

Evaluation/Development Tools

Product

Type

Ref. Design

Status

Part Used

Action

Multi Sensor Board (ALS, IMU, ENV)

Evaluation Board

No

Active

$15

More Details
