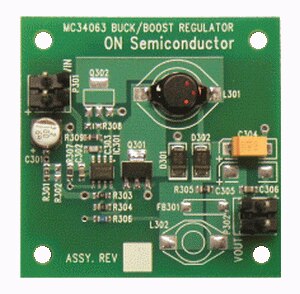

MC34063SMDBBGEVB: Buck-Boost Regulator Evaluation Board

The MC34063 is a switching control circuit for use in DC to DC converters. With an on board switch capable of delivering 1.5 A, this versatile controller can be utilized in step up, step down, buck-boost, or voltage inverting topologies with a minimum number of components.

Features and Applications


  • Wide input range from 3.0 V to 40 V
  • Operating Frequency to 100 kHz
  • Current Limiting
  • Adjustable Output Voltage
  • Switch Current to 1.5 A
  • No Error Amplifier Compensation is Required
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
Buck-Boost Regulator Evaluation Board MC34063ADG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: BOM MC34063SMDBBGEVB Bill of Materials ROHS Compliant MC34063SMDBBGEVB_BOM_ROHS.PDF - 101 KB  1
Eval Board: Gerber MC34063SMDBBGEVB Gerber Layout Files (Zip Format) MC34063SMDBBGEVB_GERBER.ZIP - 212.0 KB  1
Eval Board: Schematic MC34063SMDBBGEVB Schematic MC34063SMDBBGEVB_SCHEMATIC.PDF - 82.0 KB  0
Eval Board: Test Procedure MC34063SMDBBGEVB Test Procedure MC34063SMDBBGEVB_TEST_PROCEDURE.PDF - 104.0 KB  1
Video Buck-Boost Regulator Evaluation Board - MC34063SMDBBGEVB WVD17614/D
