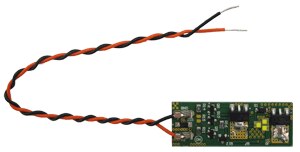

LOWVOLTAGEP2SGEVB: Three LED Low Voltage Parallel-to-Series Lighting Circuit

Low cost, general purpose LED evaluation board circuit for low voltage applications.
Features and Applications

Features

  • Low Voltage Lighting
  • Low Cost Parallel-to-Series Topology
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
LOWVOLTAGEP2SGEVB Active
Pb-free
Three LED Low Voltage Parallel-to-Series Lighting Circuit BAT54T1G BCP56-10T1G
MBRA1H100T3G MMBT3904LT1G
MMBT3906LT1G MMSZ5260BT1G
NSI50010YT1G NSS40200LT1G
NSS40201LT1G
Technical Documents
Type Document Title Document ID/Size Rev
Design Notes 3 LED Low Voltage Parallel-to-Series Lighting Circuit DN05091/D - 779 KB  2
Eval Board: Gerber LOWVOLTAGEP2S Gerber Layout Files (Zip Format) LOWVOLTAGEP2S_GERBER - 102 KB  0
Eval Board: Test Procedure LOWVOLTAGEP2S Test Procedure LOWVOLTAGEP2S_TEST_PROCEDURE - 222 KB  0
Eval Board: BOM LOWVOLTAGEP2SGEVB Bill of Materials (ROHS Compliant) LOWVOLTAGEP2SGEVB_BOM_ROHS - 26 KB  1
Eval Board: Schematic LOWVOLTAGEP2SGEVB Schematic LOWVOLTAGEP2SGEVB_SCHEMATIC - 100 KB  0
