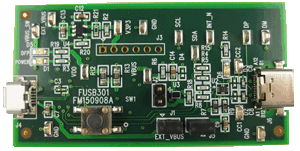

FUSB301GEVB: Autonomous USB Type-CTM Controller with Super Speed Switch Control

The FUSB301 System Board consists of is designed to demonstrate Fairchild?s Type-C and SuperSpeed USB interface products. The board supports the following functions using Fairchild integrated solutions:
1. FUSB301 Autonomous Type-C Controller
2. FUSB340 SuperSpeed USB 2:1 Switch
3. FPF2411 VBUS Power Switch
4. FSA321 USB/Audio Switch
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
FUSB301GEVB Active
Pb-free
Autonomous USB Type-CTM Controller with Super Speed Switch Control FUSB301TMX
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual FUSB301 EVB User Manual FUSB301 EVB USer Manual - 878 KB  2
Eval Board: BOM FUSB301GEVB Bill Of Materials (ROHS Compliant) FUSB301GEVB_BOM_ROHS - 38 KB  0
Eval Board: Gerber FUSB301AGEVB Gerber Files (ZIP Format) FUSB301GEVB_GERBER - 2997 KB  0
Eval Board: Schematic FUSB301GEVB Schematic FUSB301GEVB_SCHEMATIC - 275 KB  0
Eval Board: Test Procedure FUSB301GEVB Test Procedure FUSB301GEVB_TEST_PROCEDURE - 266 KB  0
