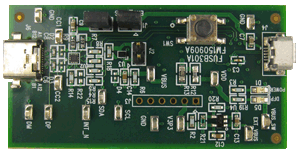

FUSB301AGEVB: Autonomous USB Type-CTM Controller with Configurable I2C Address

The FUSB301A is an autonomous USB Type-C controller device designed to negotiate the Type-C interface connections. This document along with the FUSB301A datasheet are a guide to using the evaluation board designed for this device.
The FUSB301A is designed to be controlled from an application processor so for demonstration purposes a microcontroller has been added to the board for convenient chip control and graphical user interface (GUI). Fairchild will supply this GUI to assist in the Evaluation of the FUSB301A. If no GUI control is available the FUSB301A will boot up in UFP mode.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
Autonomous USB Type-CTM Controller with Configurable I2C Address FUSB301ATMX
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual FUSB301A EVB User Manual FUSB301A EVB User Manual - 965 KB  2.1
Eval Board: Gerber FUSB301AGEVB Gerber Files (ZIP Format) FUSB301AGEVB_GERBER - 2997 KB  0
Eval Board: BOM FUSB301AGEVB Bill Of Materials (ROHS Compliant) FUSB301AGEVB_BOM_ROHS - 38 KB  0
Eval Board: Schematic FUSB301AGEVB Schematic FUSB301AGEVB_SCHEMATIC - 281 KB  0
Eval Board: Test Procedure FUSB301AGEVB Test Procedure FUSB301AGEVB_TEST_PROCEDURE - 269 KB  0
