F143-MINI-2-GEVK: AX8052F143 Mini Development Kit

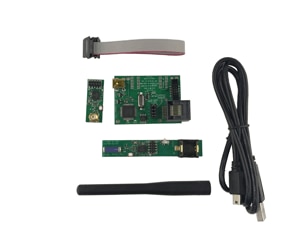

The F143-Mini-DVK is miniaturized development kit for the designer starting out with the AX8052F143, an ultra-low power, high performance SoC RF Microcontroller. The F143-Mini-DVK hardware consists of a USB debug adapter and a pair of RF modules (F143-Mini-A-MOD and F143-Mini-B-MOD modules) and includes all software necessary to quickly develop wireless applications. The modules have a tiny footprint of just 33 x 15 mm2. One module comes with a chip antenna the other is equipped with an SMA connector. The boards in this kit are optimized for operation at 868MHz, however they can be re-programmed for operation in the 915MHz band by using our RadioLab software. RF performance will be reduced but the boards are still useful for evaluation and software development.

The AX Debug Adapter can be found here: AXDBG-2-GEVK

Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
F143-MINI-2-GEVK Active
AX8052F143 Mini Development Kit AX8052F143-3-TX30 AX8052F143-3-TX40
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: BOM F143-MINI-A-MOD-GEVB Bill of Materials (ROHS Compliant) F143-MINI-A-MOD-GEVB_BOM_ROHS.pdf - 83 KB  1
Eval Board: Schematic F143-MINI-A-MOD-GEVB Schematic F143-MINI-A-MOD-GEVB_SCHEMATIC.pdf - 52 KB  0
Eval Board: Gerber F143-MINI-A-MOD-GEVB Gerber Layout Files (Zip Format) F143-MINI-A-MOD-GEVB_GERBER.zip - 62 KB  1
Eval Board: Gerber F143-MINI-B-MOD-GEVB Gerber (Zip Format) F143-MINI-B-MOD-GEVB_GERBER.zip - 126 KB  1
Eval Board: Schematic F143-MINI-B-MOD-GEVB Schematic F143-MINI-B-MOD-GEVB_SCHEMATIC.pdf - 55 KB  1
Application Notes AX Development Systems - Troubleshooting Guide AND9621/D - 530 KB  2
