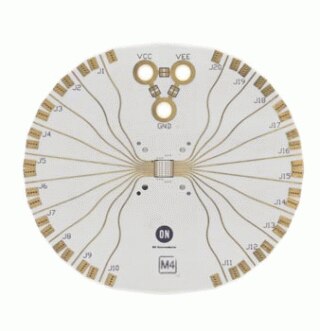

ECLTSSOP20EVB:  High Frequency TSSOP20 Evaluation Board

ON Semiconductor has developed an evaluation board for the devices in 20-lead TSSOP package. These evaluation boards are offered as a convenience for the customers interested in performing their own engineering assessment on the general performance of the 20-lead TSSOP device samples.
Features and Applications

Features

  • High bandwidth 50 Ohm controlled impedance
  • Four layer board with split (dual) power supplies
  • Accommodates several different design configurations
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
ECLTSSOP20EVB Active
High Frequency TSSOP20 Evaluation Board
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual Evaluation Board User's Manual for High Frequency TSSOP 20 EVBUM2057/D - 247.0 KB  2
