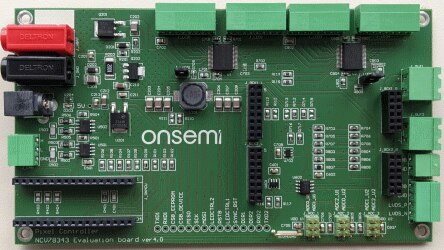

NCV78343R1GEVB: NCV78343 MOTHER BOARD

The NCV78343 mother board features two NCV78343 pixel controller devices. Board can be used to individually control up to 24 pixels. UART as a communication protocol is available on both CAN PHY and M-LVDS layers, which allows to simulate different system architectures directly on the board. There is an optional slot for NCV78763R1DAGEVB boost-buck converter to supply current for LED string. ONMCU3V3R1GEVB MCU control board can be inserted into dedicated socket as interface between PC and evaluated devices. Board features CAN and M-LVDS connectors to allow chaining of multiple devices, NCV78343R1GEVB mother boards or NCV78343R1DAGEVB satellite boards.
Features and Applications

Features

  • Up to 24 individually controlled pixels
  • Fully controllable by the SW GUI via USB cable
  • Supports two interfaces: CAN and M-LVDS
  • Supports different system architectures
  • Possibility to connect more pixel controllers in a chain
  • Wide input supply voltage range
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCV78343R1GEVB Active
Pb-free
NCV78343 MOTHER BOARD NCV78343DQ0R2G
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: BOM NCV78343R1GEVB Bill of Materials (ROHS Compliant) NCV78343R1GEVB_BOM_ROHS - 110 KB  0
Eval Board: Gerber NCV78343R1GEVB Gerber Layout Files (Zip Format) NCV78343R1GEVB_GERBER_FILES - 1510 KB  0
Eval Board: Schematic NCV78343R1GEVB Schematic NCV78343R1GEVB_SCHEMATIC - 1717 KB  0
