NCV78343 Kit with LED

Overview

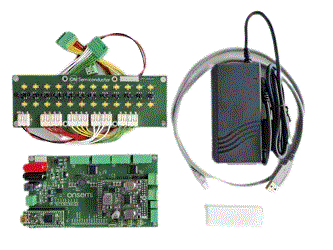

NCV78343FULLGEVK Evaluation Kit contains all necessary hardware and software to control the NCV78343 pixel controller from your PC. This version of evaluation kit is delivered in carboard box and is mainly intended for fast evaluation purposes. Provided user-friendly software with Graphical User Interface (GUI) makes operation of this device easy. Supplied evaluation board provides quick access to all important signals and gives you the possibility to connect evaluation kit with your own application or with another NCV78343 evaluation board (NCV78343R1GEVB or NCV78343R1GEVB).

Evaluation kit content:

  • Up to 24 LED Pixels
  • Fully Controllable by the SW GUI via USB Cable
  • Supports Two Interfaces: CAN and M−LVDS
  • Supports Different System Architectures
  • Possibility to Connect More Pixel Controllers in a Chain
  • Wide Supply Voltage Range
  • Test Points for Important Signal
  • Single Side PCB Assembly
  • Optional BOOST−BUCK Convertor to Supply LEDs
