NCV706278FULLGEVK: LIN Automotive stepper motor driver kit

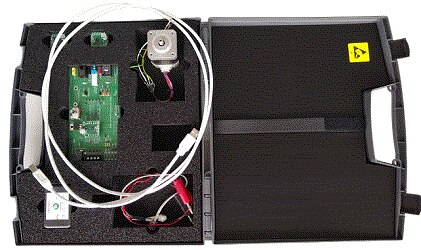

The plug-and-play NCV70627/8FULLGEVK LIN Automotive Stepper Motor Driver Kit is delivered in plastic case and is intended for presentation purposes. It contains all necessary hardware and software needed to control the NCV70627/NCV70628 microstepping motor driver from your PC. The user-friendly Graphical User Interface (GUI) makes it possible to operate the evaluation kit in an easy way. Provided motherboard gives a lot of flexibility during your development process. Easy access to several signals makes debugging very easy and gives you the possibility to connect the evaluation kit with your own application which reduces the development time. Evaluation of the complete NCV7062X family is made very easy by means of the separate daughterboards.

Note: This kit can be used with the following orderable daughterboards:

NCV70627:

NV706272R2DBDQGEVB

NV706272R2DBMWGEVB

NCV70628:

NV706281R2DBGEVB

Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCV706278FULLGEVK Active
Pb-free
LIN Automotive stepper motor driver kit NCV70627DQ002AR2G NCV70627MW002AR2G
NCV70628MW001R2G
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: BOM NCV70627/8FULLGEVK Bill of Materials (ROHS Compliant) NCV70627_8FULLGEVK_BOM_ROHS.pdf - 414 KB  0
Eval Board: Schematic NCV70627/8FULLGEVK Schematic NCV70627_8FULLGEVK_SCHEMATIC.pdf - 514 KB  0
Eval Board: Gerber NCV70627/8FULLGEVK Gerber Layout Files (Zip Format) NCV70627_8FULLGEVK_GERBER.pdf - 989 KB  0
