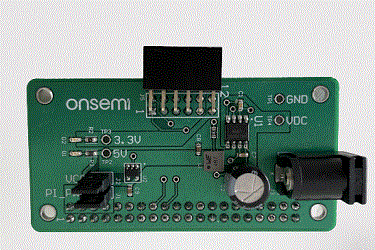

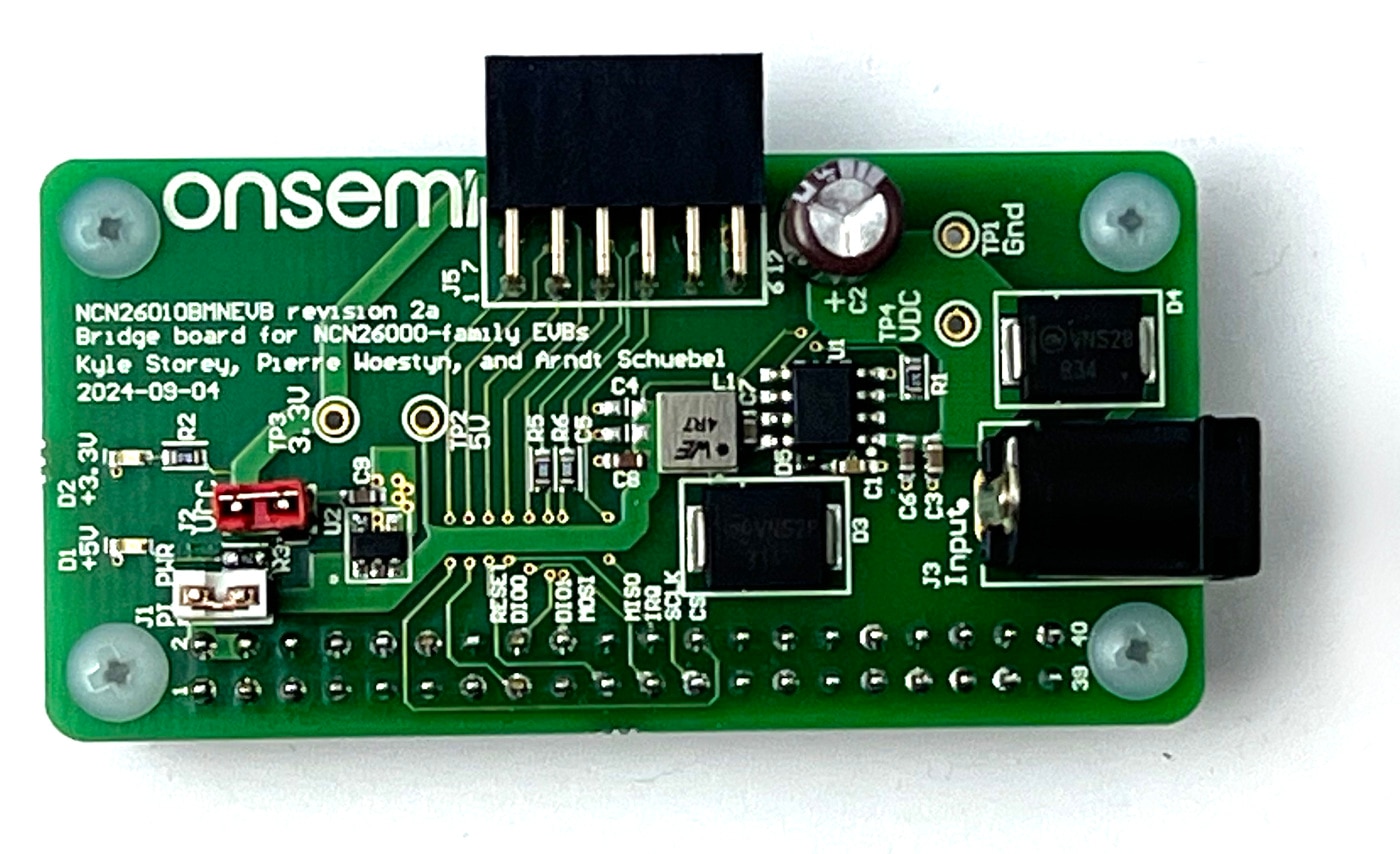

NCN26010BMNEVB: NCN26010BMNEVB Evaluation Board

The NCN26010BMNEVB is a PCB designed to allow customers to connect to onsemi's NCN26010XMNEVB 10BASE-T1S SPI enabled 10BASE-T1S MACPHY Evaluation board to Raspberry Pi single board computers (SBC).
Its main purpose is to act as a physical interface adapter, routing the PMOD connection of the NCN26010XMNEVB to the appropriate pins on the 40 pin Raspberry Pi SBC.
Evaluation/Development Tool Information
Product Status Compliance Short Description Parts Used Action
NCN26010BMNEVB Active
Pb-free
NCN26010BMNEVB Evaluation Board NCN26010XFBR2G NCN26010XMNTXG
Technical Documents
Type Document Title Document ID/Size Rev
Eval Board: Manual NCN26010BMNEVB 10BASE-T1S Power Supply and Adapter Board User's Manual EVBUM2834/D - 634 KB  1
Eval Board: BOM NCN26010BMNEVB Bill of Materials (ROHS Compliant) NCN26010BMNEVB_BOM_ROHS - 283 KB  0
Eval Board: Schematic NCN26010BMNEVB Schematic NCN26010BMNEVB_SCHEMATIC - 178 KB  0
Eval Board: Gerber NCN26010BMNEVB Gerber Layout Files (Zip Format) NCN26010BMNEVB_GERBER - 66 KB  0
Eval Board: Test Procedure NCN26010BMNEVB Test Procedure NCN26010BMNEVB_TEST_PROCEDURE - 240 KB  0
