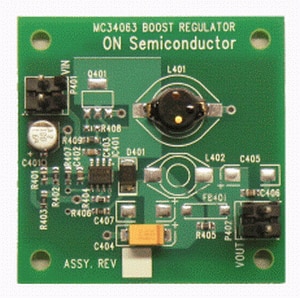

Switching Control Circuit Evaluation Board

Overview

The MC34063 is a switching control circuit for use in DC to DC converters. With an on board switch capable of delivering 1.5 A, this versatile controller can be utilized in step up, step down, buck-boost, or voltage inverting topologies with a minimum number of components.

  • Wide Input Range from 3.0 V to 40 V
  • Operating Frequency to 100 kHz
  • Current Limiting
  • 2% Reference
  • Adjustable Output Voltage
  • Switch Current to 1.5 A
  • No Error Amplifier Compensation is Required

Evalution/Development Tools

Product

Type

Ref. Design

Status

Part Used

Action

Switching Control Circuit Evaluation Board

Evaluation Board

No

Active

$50

More Details

Show More

1-25 of 25

Products per page

Jump to :
