NCV92310-GEVB

Automotive POC Power Management IC

Products

Jump to

Overview Evaluation/Development Tools Technical Documentation

Overview

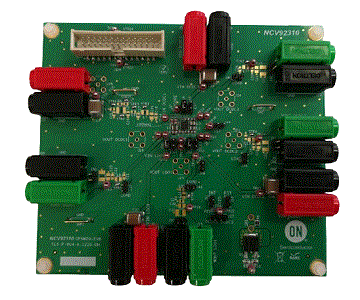

The NCV92310-GEVB provides a complete evaluation platform for automotive and industrial camera modules and allows developers to evaluate and validate all the output voltages and sequences needed in their applications. The evaluation board comes with an easy to use GUI which allows complete configuration and control of the NCV92310 enabling rapid evaluation of the device and easy integration into camera modules.

Applications

Power Over Coax POL Supply
Camera modules

Features

1 Power Over Coax DCDC Converter (2.15MHz,2.2uH/10uF, 1.2A)
2uH/10uF, 1.2A) Programmable output voltage from 2.8V to5.0V by 100mV steps
Footprint: 3.5 x 3.5 mm QFNW-20 0.5 mm pitch
Extended input voltage range from 4.6V to 18V
Customizable Power Up / Down Sequencewith soft start
RST and Interrupt output pin
I²C enable control bits
400kHz / 1MHz I²C compatible
Programmable output voltage from 2.6V to3.3V by 100mV steps
Programmable output voltage from 0.6V to 2.175V by 25mV steps
Programmable output voltage from 0.6V to 2.175V by 25mV steps
1 low noise - low drop out regulator
1 Power Over Coax DCDC Converter

Evaluation/Development Tools

Product

Type

Ref. Design

Status

Part Used

Reference Price

NCV92310-GEVB

Automotive POC Power Management IC

Evaluation Board

Active

NCV92310ABMTWTXG

Price N/A
