Evaluation Board | NCV78964R1DAGEVB

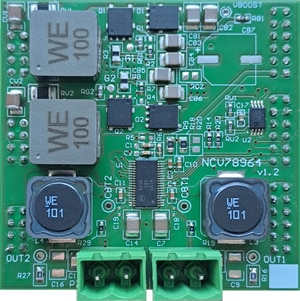

The NCV78964R1DAGEVB is a form factor Reference Design of Automotive 2-phase Boost and 2 channel Buck Power LED Driver for driving two LED strings up to 1.6A/60V in Bottom Side Cooling option. The reference design can be interfaced via I/O pins and the SPI bus to an external microcontroller. It can be combined with another Buck daughter boards to gain even more Buck outputs on single evaluation kit.

Note: This board can be used with the LEDGEN4PEVK Gen 4+ LED Driver Evaluation Kit.
