Evaluation Board | NCV70517R1DAGEVB

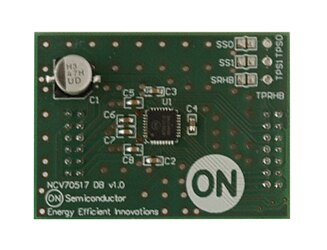

The NCV70517R1DAGEVB is a form factor Reference Design for driving bipolar stepper motors. The reference design can be interfaced via I/O pins and the SPI bus to an external microcontroller. In conjunction with the NCV705XXLITEGEVK or NCV705XXFULLGEVK evaluation kit it forms a complete solution turning high level commands from a SPI node in well defined motions.

Note: This board must be used with the NCV705XXLITEGEVK or NCV705XXFULLGEVK Automotive Stepper Motor Driver Kit.
