Open Loop evaluation board to support NCP81074AMNTBG

Overview

The NCP81074 is a single channel, low side MOSFET driver capable of sinking and sourcing up to 10A. This driver can deliver 7A peak current at the Miller plateau region to overcome the Miller effect with MOSFETs during switching. Split output configurations allow the ability to adjust the on and off slew rates. The parts are offered in a SOIC8 and 2mm by 2mm DFN package.

Evaluation/Development Tools

Product

Type

Ref. Design

Status

Part Used

Reference Price

NCP81074AGEVB

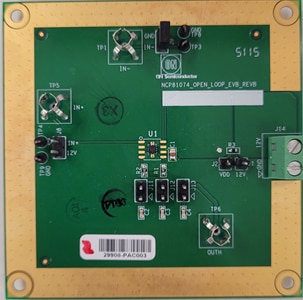

Open Loop evaluation board to support NCP81074AMNTBG

Price N/A

Loading...

More Details

Show More

1-25 of 25

Products per page

Jump to :
