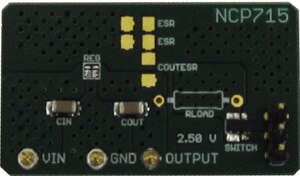

NCP715MXTBGEVB

LDO Regulator, Ultra-Low Quiescent Current, XDFN6 Package, Evaluation Board

Products

Jump to

Overview Evaluation/Development Tools Technical Documentation

Overview

The NCP715 is 50 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra-low ground current consumption (4.7 µA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.

Features

Operating Input Voltage Range: 2.5 V to 24 V
Fixed Voltage Options Available: 1.2 V to 5.0 V
Ultra Low Quiescent Current: Max. 4.7 µA Over Full Load and Temperature
±2% Accuracy Over Full Load, Line and Temperature Variations
XDFN6 package

Evaluation/Development Tools

Product

Type

Ref. Design

Status

Part Used

Reference Price

NCP715MXTBGEVB

LDO Regulator, Ultra-Low Quiescent Current, XDFN6 Package, Evaluation Board

Evaluation Board

Active

NCP715MX12TBG,

NCP715MX15TBG,

NCP715MX18TBG,

$83.3333

Technical Documentation

Name / Description

Document Type

Modified date

NCP715MXTBGEVB Gerber Layout Files (Zip Format)

NCP715MXTBGEVB_GERBER.ZIP

Eval Board: Gerber

34.82 KB

Eval Board: Gerber

September 26, 2013

NCP715MXTBGEVB Bill of Materials

NCP715MXTBGEVB_BOM_ROHS.PDF

Eval Board: BOM

29.7 KB

Eval Board: BOM

September 26, 2013

NCP715MXTBGEVB Test Procedure

NCP715MXTBGEVB_TEST_PROCEDURE.PDF

Eval Board: Test Procedure

79.87 KB

Eval Board: Test Procedure

September 26, 2013

NCP715MXTBGEVB Schematic

NCP715MXTBGEVB_SCHEMATIC.PDF

Eval Board: Schematic

89.09 KB

Eval Board: Schematic

September 26, 2013
