Evaluation Board | NCP3286GEVB

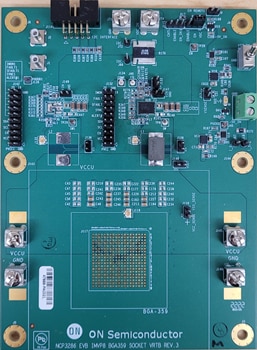

The NCP3286, a highly−efficient stackable synchronous buck regulator with PMBus interface, is capable of operating with an input range from 3 V to 18 V and supporting up to 40 A continuous load currents. Higher output currents can be achieved by 2, 3, or 4 parallel NCP3286 devices operating as an interleaved multi−phase buck regulator The NCP3286 Evaluation Board BGA359 is a test vehicle for the PMBus-compatible NCP3286 single/duel phase voltage regulator. The printed circuit board assembly (PCBA) contains all the circuitry and connections necessary to evaluate the performance of the NCP3286 under various load and system conditions, including PMBus operation. The PCBA includes a BGA359 socket (if provided) which directly interfaces with an Intel Generation 4 Voltage Regulator Test Tool (Gen4 VRTT).

Note: To access PMBUS functionality, this evaluation board must be used with DGSCOMEVB USB dongle. Please order the USB dongle seperately.
