3A Integrated Synchronous Buck Converter Evaluation Board

Overview

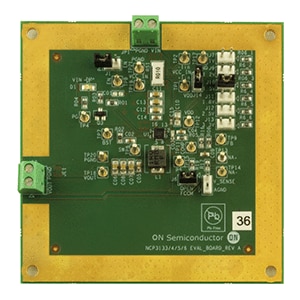

The NCP3133AGEVB evaluation board is designed to test the NCP3133A, a fully integrated synchronous buck converter for 3.3 V and 5 V step−down applications, providing up to 3 A load current.

Evaluation/Development Tools

Product

Type

Ref. Design

Status

Part Used

Reference Price

NCP3133AGEVB

3A Integrated Synchronous Buck Converter Evaluation Board

Evaluation Board

No

Active

$138.8889
