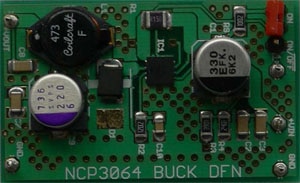

NCP3064DFBCKGEVB

DFN8 Buck Demonstration Evaluation Board

Products

Jump to

Overview Evaluation/Development Tools Technical Documentation Training & Related Media

Overview

The NCP3064 device supports a buck configuration with a wide input voltage range from 3.0V to 40.0V. The NCP3064 is a low cost converter that supports a pcurrent of 1.5A with a maximum duty cycle of 85.7%. The ON/OFF function allows turn the device to low consumption mode.
Size: 45mm x 28mm x 14mm

Feature

Input Voltage Range from 3.0 V to 40 V
Logic Level Shutdown Capability
Low Power Standby Mode, Typical 100 uA
Output Switch Current to 1.5 A
Adjustable Output Voltage Range
150 kHz Frequency Operation
Precision 2% Reference
Internal Thermal Shutdown Protection
CyclebyCycle Current Limiting
NCV Prefix for Automotive and Other Applications Requiring Site
and Control Changes
These are PbFree Devices

Evaluation/Development Tools

Product

Type

Ref. Design

Status

Part Used

Reference Price

NCP3064DFBCKGEVB

DFN8 Buck Demonstration Evaluation Board

Evaluation Board

Active

NCP3064MNTXG

$80

Technical Documentation

Name / Description

Document Type

Modified date

NCP3064DFBCKGEVB Bill of Materials ROHS Compliant

NCP3064DFBCKGEVB_BOM_ROHS.PDF

Eval Board: BOM

39.94 KB

Eval Board: BOM

July 14, 2008

NCP3064DFBCKGEVB Schematic

NCP3064DFBCKGEVB_SCHEMATIC.PDF

Eval Board: Schematic

140.29 KB

Eval Board: Schematic

July 14, 2008

NCP3064DFBCKGEVB Gerber Layout Files (Zip Format)

NCP3064DFBCKGEVB_GERBER.ZIP

Eval Board: Gerber

38.91 KB

Eval Board: Gerber

July 14, 2008

NCP3064DFBCKGEVB Test Procedure

NCP3064DFBCKGEVB_TEST_PROCEDURE.PDF

Eval Board: Test Procedure

155.65 KB

Eval Board: Test Procedure

July 14, 2008
