8W Smart LED Driver

Overview

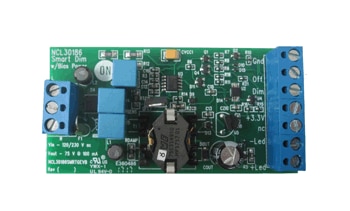

The NCL30186SMRTGEVB Evaluation Board is an AC-DC power factor corrected flyback controller targeting isolated and non−isolated “Smart−dimmable” constant current LED drivers. The controller operates in a quasi−resonant mode to provide optimal efficiency. The current control algorithm supports flyback, buck−boost, and SEPIC topologies. Thanks to a novel control method, the device is able to tightly regulate a constant LED current from the primary side. This removes the need for secondary side feedback circuitry, biasing and an optocoupler. The device is highly integrated with a minimum number of external components. A robust suite of safety protection is built in to simplify the design. This device is specifically intended for very compact space efficient designs and supports analog and PWM dimming with a dedicated dimming input intended to control the average LED current. To ensure reliable operation at elevated temperatures, a user configurable current foldback circuit is also provided.

  • Power factor correction with low harmonic distortion
  • Constant Current Control with Primary Side Feedback
  • Precise Current Regulation Accuracy
  • Line feedforward for enhanced regulation accuracy
  • Wide Vcc operating range

Evaluation/Development Tools

Product

Type

Ref. Design

Status

Part Used

Action

Show More

1-25 of 25

Products per page

Jump to :

Technical Documentation

Name / Description

Document Type

Modified date

NCL30186SMRTGEVB_Manual

0

Eval Board: Manual

2.89 MB

EN

Eval Board: Manual

June 28, 2017

More Details

NCL30186SMRTGEVB_GERBER

0

Eval Board: Gerber

300.03 KB

EN

Eval Board: Gerber

June 28, 2017

More Details

NCL30186SMRTGEVB_TEST_PROCEDURE

0

Eval Board: Test Procedure

429.06 KB

EN

Eval Board: Test Procedure

June 28, 2017

More Details

NCL30186SMRTGEVB_SCHEMATIC

0

Eval Board: Schematic

93.18 KB

EN

Eval Board: Schematic

June 28, 2017

More Details

Show More
